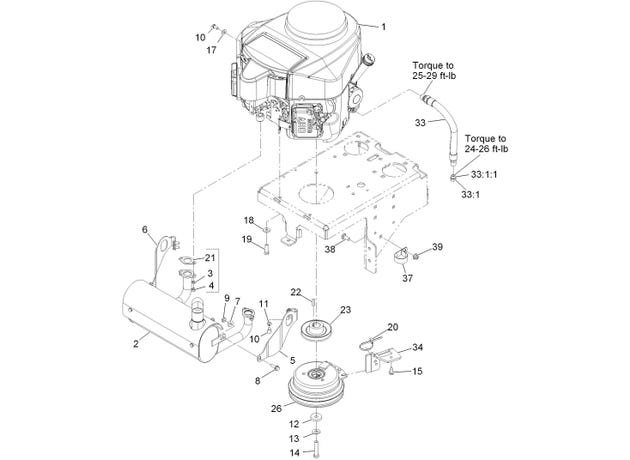

eXmark MN VT24KA524CA Engine Assembly

2

116-8747

MUFFLER, KAWASAKI, 22-26

$332.99

3

114-3550

WASHER-LOCK

$1.55

4

114-3549

Nut-M8

$3.23

5

116-2353

BRACKET-MUFFLER MOUNT, LH

$72.59

6

116-2354

BRACKET-MUFFLER MOUNT, RH

$72.59

7

104-7658

SPACER

$1.55

8

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

9

32128-25

Nut-Hex 5/16-18 Side Lock

$3.83

10

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

11

3253-4

Washer-Lock 5/16

$0.97

12

107-4136

WASHER

$6.71

13

1-603610

Washer-Spring Disc 7/16

$5.75

14

3212-9

SCREW-HH

$13.19

15

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

17

33094-00

Washer

$0.14

18

98-5975

Washer-Spring Disc 3/8

$3.71

19

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

20

3290-378

Tie-Cable

$1.11

21

1-653313

GASKET-EXHAUST

$5.03

22

1-807259

KEY

$2.46

23

116-3610

PULLEY

$82.49

26

116-3553

CLUTCH-WARNER

$427.99

33

116-4924

ENGINE OIL DRAIN HOSE ASM

$38.49

33:1

353-508

PLUG-HH

$8.87

33:1:1

237-42

O-RING

$3.24

34

116-3811-01

BRACKET-ANCHOR, CLUTCH

$39.59

37

2412-147

Clamp

$9.59

38

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

39

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55
