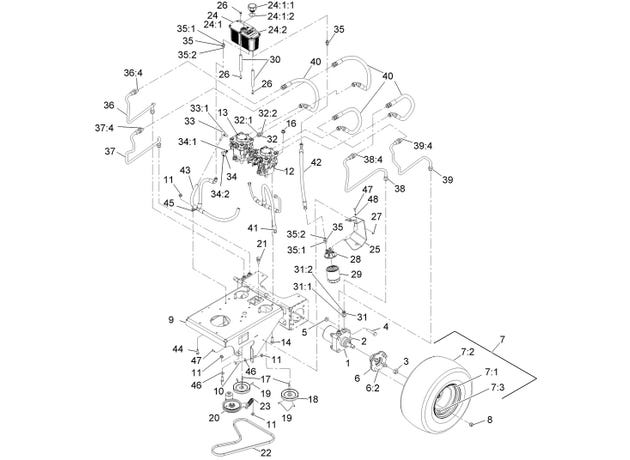

eXmark MN VT18KA363CA Ground Drive Assembly

1

104-1171

HYD MOTOR ASM

$1,108.99

2

3257-8

KEY-WOODRUFF

$5.75

3

85-7310

NUT-MOTOR, WHEEL

$27.49

4

325-10

Screw-HH 1/2-13 x 2 1/2

$6.11

5

32128-23

Nut-Hex 1/2-13 Side Lock

$2.33

6

105-0800

WHEEL HUB ASM

$221.99

6:2

10-6830

STUD-TYPE, DRIVE

$6.11

7

116-4587

WHEEL/TIRE ASM

$233.99

7:1

116-4605

RIM-8 INCH

$92.99

7:2

116-4606

TIRE

$160.99

7:3

232-27

STEM-VALVE

product not available CALL FOR AVAILABILITY

$3.30

8

242-50

Nut-Lug 1/2-20

$2.11

9

116-4744-01

ENGINE BASE

$390.99

10

323-18

SCREW-HH

$5.03

11

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

12

116-2572

PUMP - HYDRAULIC

$1,188.99

13

116-4635

PUMP-HYDRAULIC

$1,191.99

14

3232-3

Bolt-Carriage 7/16-14 x 1 1/2

$3.71

16

114-8417

NUT-HF, NI

$2.85

17

1-807272

Key-5mm x 5mm x 25mm

$6.35

18

105-5648

PULLEY-PUMP

$116.99

19

3241-5

Setscrew-SQH 1/4-20 X 5/8

$2.59

21

132-4729

ANCHOR-SPRING, SHORT

$7.31

22

119-0174-SL

BELT-V WITH SLEEVE

$45.09

23

108-4056

SPRING-EXTENSION

$9.23

24

116-2066

RESERVOIR ASM

$177.99

24:1:1

103-7615

Asm, Cap W/Gasket

$30.79

24:1:2

142-2792

O-RING

$1.68

24:2

116-0404

DECAL-HYDRAULIC TANK

$1.55

25

116-4319-01

PLATE-FILTER MOUNT

$45.09

26

117-8304

Screw-Hex Flange 1/4-20 x 3/4

$3.59

27

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

28

103-2888

HEAD-FILTER

$82.99

29

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

30

116-4343

ROD-RESERVOIR STAND

$19.79

31

1-603991

Adapter-Straight

$21.99

31:1

237-80

O-RING

$6.83

32

1-603990

Adapter-Straight

$18.69

32:1

1-603920

O-Ring-SAE #8

$3.95

32:2

1-603992

O-Ring-37 Flare #8

$2.98

33

100-4887

FITTING-ELBOW, 90

$27.49

34

103-2155

Adapter-90°

$30.79

35

103-2156

Adapter-Straight

$42.89

35:1

237-42

O-RING

$3.24

35:2

103-1020

O-Ring-37 Flare #6

$1.55

36

116-4094

HYDRAULIC TUBE ASM

$119.99

37

116-4161

HYDRAULIC TUBE ASM

$128.99

38

116-4639

HYDRAULIC TUBE ASM LH

product not available CALL FOR AVAILABILITY

$0.01

39

116-4640

HYDRAULIC TUBE ASM LH

product not available CALL FOR AVAILABILITY

$0.01

39:4

1-603922

Face O-Ring

$20.89

40

116-4368

HOSE ASM-HYD HP 1/2

$87.99

41

116-5145

HOSE-ASM CHARGE

$98.99

42

116-4252

HOSE ASM-HYD LP 3/8X14.4

$43.99

43

116-5460

HOSE ASM - HYD 3/8

$73.69

44

105-6245

Screw-Tapping

$6.83

45

1-633396

Clip-Loom 5/8

$5.75

46

98-5975

Washer-Spring Disc 3/8

$3.71

47

321-3

Screw-HH 1/4-20 x 5/8

$1.55

48

1-805004

Washer-Lock 1/4 Heavy

$1.55
