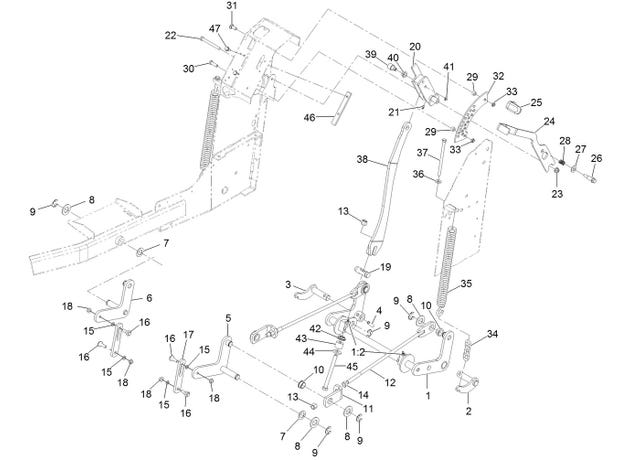

eXmark MN VTX740EKC60400 Deck Lift Assembly

1

116-3103

REAR CROSSSHAFT ASM

$526.99

1:2

302-11

Zerk-45° 1/4-28

$1.68

2

116-3104-01

SHAFT-PIVOT, LH

$53.89

3

116-3105-01

SHAFT-PIVOT, RH

$53.89

4

116-3107

PIN-SPIRAL

$8.51

5

121-5993-01

ARM-LIFT, LH

$61.59

6

121-5994-01

ARM-LIFT, RH

$61.59

7

110-6767

WASHER-THRUST

$2.07

8

3256-29

Washer-7/8 SAE

$3.11

9

32151-103

E-Ring

$3.47

10

116-2909

BEARING-FLANGE

$8.51

11

116-6035

BRACKET-LIFT ROD

$39.59

12

116-8676

LIFT ROD ASM

$50.59

13

3296-23

Nut-Nyloc 1/2-13

$1.25

14

3217-9

NUT-HH

$0.74

15

40-1940

WASHER

$2.98

16

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

17

117-0519

LINK-LIFT

$38.49

18

32128-21

Nut-3/8-16 Flanged Side Lock

$0.97

19

114-5274

PIN-HOC

$26.39

20

114-3512

HOC HANDLE ASM

$223.99

21

302-5

Zerk 1/4-28 Str Thrd Forming

$3.59

22

323-42

Screw-HH 3/8-16 x 3 3/4

$9.11

23

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

24

114-1878-03

LEVER-HOC

$112.99

25

1-633268

GRIP-LEVER

$15.39

26

66-0561

SCREW-SHOULDER

$6.59

27

3256-26

Washer-1/2 SAE

$0.59

28

65-9940

SPRING

$5.03

29

111044

Bushing

$1.55

30

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

31

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

32

114-5307

BRACKET-HOC

$35.19

33

3296-59

Nut-Nyloc 3/8-16 Thin

product not available CALL FOR AVAILABILITY

$0.01

34

103-9859

CHAIN-DECKLIFT

$7.43

35

116-0886

SPRING-EXTENSION

$126.99

36

98-5975

Washer-Spring Disc 3/8

$3.71

37

323-58

Bolt-HH 3/8-16 x 6 Tap

$5.99

38

116-2939

BAR-LIFT

$99.99

39

116-3048

HUB-PIVOT

$40.69

40

116-3047

BEARING-FLANGE

$5.75

41

32151-47

RING-RETAINING

$3.24

42

116-3625

SEAT-SPRING

$7.55

43

116-3241

SPRING-URETHANE

$34.09

44

92-2651

Washer

$5.27

45

325-22

Screw-HH 1/2-13 x 5 1/2

$9.11

46

116-3124

SKID-HANDLE, LIFT

$23.09

47

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98
