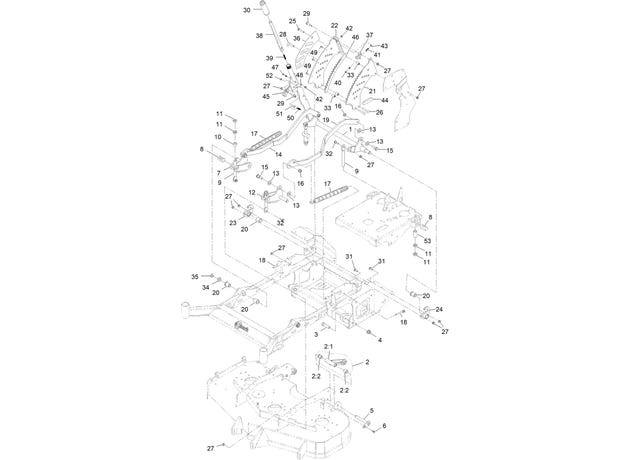

eXmark MN VXS740EKC60400 Deck Lift Assembly

1

146-1899-03

CROSS SHAFT-DECKLIFT-REAR [BLACK]

$395.99

2

142-5096

ASM-DECK STRUT W/BUSHINGS

$128.99

2:1

142-9276

ASM-DECK STRUT

$127.99

2:2

142-5095

BUSHING

$5.99

3

121-2111

SCREW-HH

$31.89

4

142-8396

NUT-FLG LK

$3.83

5

142-6519

ASM-DECK STRUT PIN

$26.39

6

126-4424

Screw-HHF Shoulder 3/8-16 x 3/4 TF

$2.98

7

142-7944-03

WELD-ARM-DECKLIFT-FRONT-RH

$103.99

8

142-7939

TRUNION-DECK LIFT

$23.09

9

142-9163

LINK,DECK LIFT ADJUSTER

$41.79

10

142-7940

SPACER-DECKLIFT

$6.11

11

3220-7

NUT-JAM

$4.91

12

142-7945-03

WELD-ARM-DECKLIFT-FRONT-LH

$103.99

13

3256-28

Washer-3/4 SAE

$3.95

14

142-8670-03

LINK-DECKLIFT-RH

$153.99

15

116-0780

Screw-Shoulder HHF 1/2-13 x 1.12

$9.59

16

99-5107

Nut-Lock 1/2-13

$2.20

17

116-0886

SPRING-EXTENSION

$126.99

18

92-7674

Screw-SHCS 3/8-16 x 2.212

$3.11

19

142-8671-03

LINK-DECKLIFT-LH

$153.99

20

142-4794

BUSHING-FLANGED

$16.49

21

142-9150

PLATE-INNER-HOC

$106.99

22

142-8589-03

PLATE-OUTER-HOC

$106.99

23

142-6460

SUPPORT-HOC SHAFT RH

$41.79

24

142-6463

SUPPORT-HOC SHAFT LH

$41.79

25

3231-40

Bolt-Carriage 3/8-16 x 2 1/4

$2.98

26

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

27

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

28

116-5584

PIN-HOC

$5.63

29

62-1330

BOLT-SHOULDER

$12.09

30

142-6679-03

GRIP-HANDLE-DECKLIFT

$78.09

31

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

32

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

33

142-6720

SPACER-HOC

$2.33

34

103-0357

WASHER

$2.98

35

32151-103

E-Ring

$3.47

36

142-6805

DECAL-HEIGHT OF CUT

$15.39

37

142-7290

PAWL-DECKLIFT

$8.15

38

146-1897

PLUNGER-TOP

$79.99

39

142-7365

SPRING-COMPRESSION

$1.68

40

142-7437

SCREW-SHOULDER-CAP

$9.59

41

117-1031

SPRING-COMPRESSION

$3.23

42

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

43

107-0279

WASHER

$1.25

44

142-7963

PLATE-GUIDE HOC INNER

$11.99

45

142-8673

PAWL-LOCK-DECKLIFT

$95.99

46

142-9151

PLATE-DOUBLER-HOC-LOCK

$43.99

47

142-8707

SCREW-SHOULDER-CAP

$14.29

48

107-3237

SPACER

$11.99

49

119-1065

SCREW-HWH

$2.72

50

110-9458

SPRING-EXTENSION

$3.95

51

121-6991

BOLT-SHOULDER

$11.99

52

3296-47

Nut-Nyloc 5/16-18 Thin

$4.31

53

142-8897

SPACER 1.13 O.D. X .81 I.D. X 2.05L

$23.09
