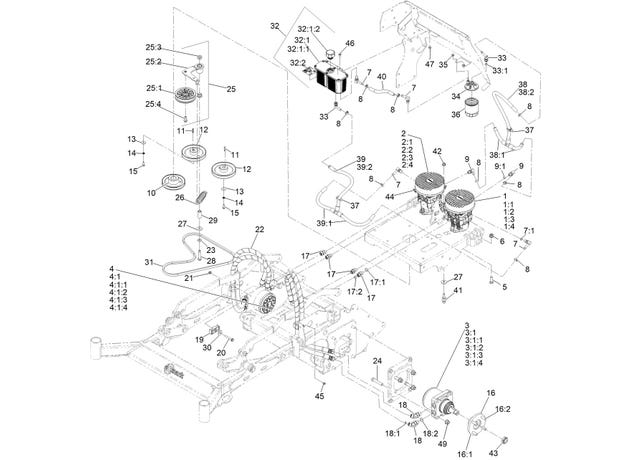

eXmark MN VXS740EKC60400 Hydraulic Assembly

1

142-8892

PUMP-12CC LT W/SHOCK VALVE

$975.99

2

142-8893

PUMP-12CC RT W/SHOCK VALVE

$1,004.99

2:1

126-2479

KIT, 10CC/12CC PUMP KIT

$341.99

2:2

105-6184

SEAL OVERHAUL KIT

$81.39

2:3

103-7489

GUARD-PUMP

$82.99

2:4

103-7488

PUMP-COOLING

$75.89

3

142-8578

MOTOR, TL240 LH

$1,010.99

4

142-8577

MOTOR, TL240 RH

$1,010.99

4:1

130-1788

SEAL KIT

$154.99

5

3232-3

Bolt-Carriage 7/16-14 x 1 1/2

$3.71

6

114-8417

NUT-HF, NI

$2.85

7

100-4887

FITTING-ELBOW, 90

$27.49

8

103-1988

Clamp-Hose 11/16

$1.55

9

126-2927

FITTING-90 DEG

$26.39

10

116-1946

SHEAVE-PUMP, DRIVE

$75.89

11

135-7971

KEY

$3.11

12

142-6433

SHEAVE-PUMP

$48.39

13

142-8011

WASHER-1.00 OD X .25 ID

$1.55

14

1-323235

WASHER-BELLVILLE

$5.75

15

142-8012

SCREW-HHF

$1.55

16

18-3209

WHEEL HUB/STUD ASM

$160.99

16:1

10-6870-03

HUB-WHEEL

$139.99

16:2

10-6830

STUD-TYPE, DRIVE

$6.11

17

340-4

FITTING-STRAIGHT

$12.09

17:2

237-79

O-RING

$6.11

18

340-89

FITTING-HYD, 45 DEG

$40.69

18:1

237-30

O-RING

$2.98

18:2

237-80

O-RING

$6.83

19

94-8105

CLAMP-TUBE

$7.79

20

139-4479

SCREW-HHF

$2.46

21

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

22

142-6300

HOSE ASM-HYD HP

$111.99

23

98-5975

Washer-Spring Disc 3/8

$3.71

24

325-11

Screw-HH 1/2-13 x 2 3/4

$3.47

25

142-6821

ASM-PUMP IDLER

$108.99

25:1

109-4077

PULLEY-IDLER, FLAT

$21.99

25:2

142-6820

ASM-PUMP IDLER ARM

$87.99

25:3

109-8054

Bushing-Flanged

$5.75

25:4

126-1680

SCREW-HHF

$1.94

26

135-1272

SPRING, EXTENSION

$17.59

27

1-373034

Washer

$3.83

28

126-2956

Screw-HHF 3/8-16 x 2 1/4

$7.19

29

126-2954

PIVOT, IDLER

$7.55

30

52-2861

WASHER

$1.68

31

142-8149

BELT- COG A 54

$54.99

32

116-2066

RESERVOIR ASM

$177.99

32:1:1

103-7615

Asm, Cap W/Gasket

$30.79

32:1:2

142-2792

O-RING

$1.68

32:2

115-4212

DECAL-WARNING

$11.99

33

103-1807

FITTING-BARBED, 45 DEG

$28.59

33:1

237-42

O-RING

$3.24

34

103-2888

HEAD-FILTER

$82.99

35

3234-13

SCREW-HHF

$1.68

36

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

37

32180-030

CLIP-TIE

$5.03

38

142-7809

ASM-HYDRAULIC LO-PRES

$64.89

38:1

142-6776

HOSE, LP HYDRO

$20.89

38:2

142-6775

HOSE, LP HYDRO

$20.89

39

142-7810

ASM-HYDRAULIC LO-PRES

$64.89

39:1

142-6773

HOSE, LP HYDRO

$20.89

39:2

142-6772

HOSE, LP HYDRO

$20.89

40

142-6771

HOSE, LP HYDRO

$9.83

41

126-0423

PIN-SPRING, ANCHOR

$8.87

42

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

43

116-1399

LOCKNUT

$15.39

44

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

45

137-4795

SCREW

$1.55

46

3234-4

Screw-HH FLG 1/4-20 x 3/4

$1.11

47

32128-32

Nut-Hex 1/4-20 Side Lock

$3.23

49

99-5107

Nut-Lock 1/2-13

$2.20
