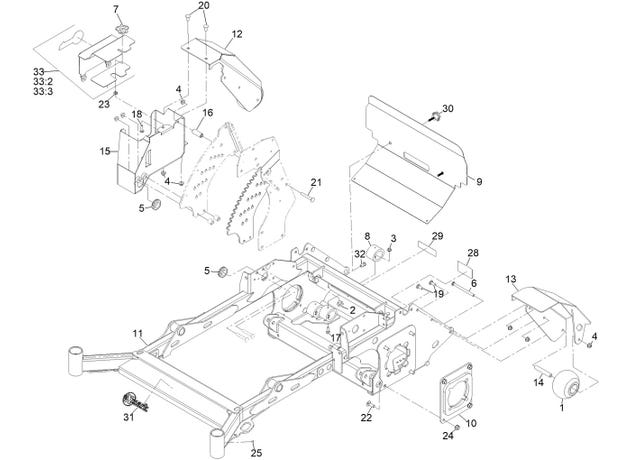

eXmark MN VXS740EKC52400 Main Frame Assembly

1

103-8415

ROLLER-ANTI-SCALP

$24.19

2

104-1412

BUMPER-RUBBER

$17.59

3

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

4

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

5

108-3723

GROMMET

$8.63

6

109-6795

Bolt-Carriage 3/8-16 x 5

$5.75

7

117-5976

KNOB-HANDLE

$3.11

8

135-2548

BUMPER-ISOLATOR

$18.69

9

142-8804-03

GUARD-REAR FOOT

$105.99

10

142-8803-03

WLD-MTR MOUNT 48/52

$121.99

11

142-8823

MAINFRAME ASM -48/52

$1,719.99

12

142-6264-01

FENDER- WHEEL RH [RED]

$162.99

13

142-6265-01

FENDER- WHEEL LH [RED]

$162.99

14

142-6400

SPACER- ROLLER

$13.19

15

142-6571-03

WELD-BATTERY BOX

$138.99

16

142-6675

SPACER- ROLLER

$8.99

17

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

18

3230-29

SCREW-CARR

$2.98

19

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

20

3231-27

Bolt-Carriage 3/8-16 x 7/8

$4.91

21

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

22

3232-2

SCREW-CARR

$5.15

23

32128-20

Nut-Whizlock 5/16-18

$1.39

24

32128-37

Nut-Whizlock 7/16-14

$4.67

25

1-811010

Plug

$5.75

28

116-8253

DECAL-DRIVE RELEASE

$3.11

29

112-9028

DECAL-COVER, MISSING

$20.89

30

139-2401

KNOB

$3.95

32

137-1218

NUT-CLINCH

$1.55

33

142-8510

ASM-LID BATTERY W/PAD

$45.09

33:2

142-9384

PAD-BATTERY BOX LID

$9.59

33:3

126-6575

DECAL-EXMARK LOGO

$6.11
