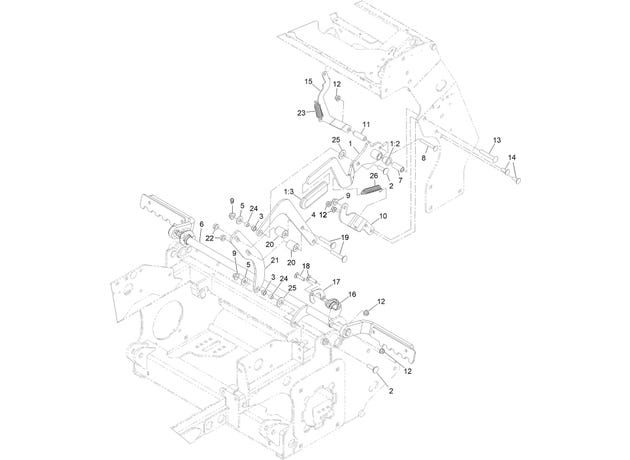

eXmark MN VXS740EKC52400 Park Brake Assembly

1

146-0208

ASM-HANDLE BRAKE

$128.99

1:2

108-2974

BUSHING-FLANGE

$6.23

1:3

1-633268

GRIP-LEVER

$15.39

2

119-4162

SCREW-CARR

$2.07

3

133-5109

BEARING-SLEEVE

$2.98

4

142-7464

LINK-BRAKE UPPER

$24.19

5

3256-4

Washer-3/8 Std

$1.94

6

142-7470-03

ASM-BRAKE SHAFT [BLACK]

$173.99

7

146-0245

SPACER-PIVOT

$7.19

8

3230-8

SCREW-CARR

$5.27

9

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

10

146-0570-03

BRACKET-BRAKE LEVER SUPT

$15.39

11

142-6746

SPACER-.31 X 1.25 YZ

$8.99

12

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

13

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

14

3230-10

Bolt-Carriage 5/16-18 x 7/8

$4.19

15

142-7765-03

LINK-BRAKE CONTROL LOCK

$18.69

16

115-5065

BUSHING-FLANGE

$8.51

17

135-7867

SUPPORT, BEARING

$5.99

18

3230-29

SCREW-CARR

$2.98

19

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

20

142-7467

SPACER-.39 IDx1.0 ODx1.2 L

$6.11

21

142-9372

LINK - LOWER BRAKE

$24.19

22

3290-357

Nut-Whizlock 3/8-16

$1.11

23

126-2127

SPRING-EXTENSION

$8.51

24

142-7468

SPACER-BRAKE PIVOT

$3.11

25

61-1950

WASHER-PLASTIC

$1.39

26

109-7124

SPRING-EXTENSION

$8.51
