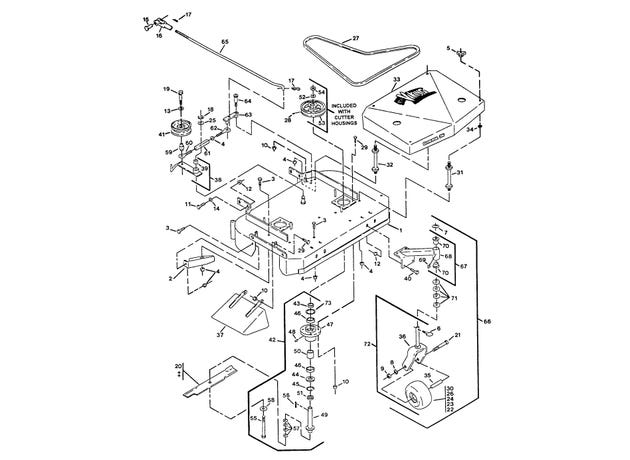

eXmark MN V48-14K-5 36" Mower Deck

1

1-302227

Front Deck w/decals and dogleg

product not available CALL FOR AVAILABILITY

$0.01

2

1-302189-01

BAFFLE-DOGLEG

$50.59

3

322-2

Screw-HH 5/16-18 x 5/8

$2.98

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

1-323385

Knob-3 Prong

$5.75

6

1-809020

PIN

$12.09

7

1-513338

WASHER-FLAT

$4.55

8

3253-7

WASHER-LOCK

$1.25

9

3217-9

NUT-HH

$0.74

10

3296-29

Nut-Nyloc 5/16-18

$2.72

11

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

12

3290-357

Nut-Whizlock 3/8-16

$1.11

13

3256-24

Washer-3/8 SAE

$0.83

14

98-5975

Washer-Spring Disc 3/8

$3.71

15

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

16

1-303105

Yoke-Adjustable

$13.19

17

1-806003

PIN-COTTER

$1.81

18

32151-103

E-Ring

$3.47

19

1-803003

BOLT,WHIZLCK3/8-16X13/4

product not available CALL FOR AVAILABILITY

$0.01

20

103-6584-S

SPK, BLADE NOTCHED 18.00

$32.99

21

325-20

Screw-HH 1/2-13 x 6

$8.51

22

1-513810

BUSHING

$6.59

23

1-513809

BEARING

$36.29

24

1-513808

TIRE

$43.99

25

1-303352

WASHER-SPINDLE

$2.98

27

1-303499-SL

BELT,BLADE DRIVE 36 WITH SLEEVE

$78.09

28

1-803310

SCREW-SET

$2.98

29

322-5

Screw-HH 5/16-18 x 1

$0.74

30

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

31

1-303537

STUD-SHIELD, BELT (SHORT)

$7.07

32

1-303536

STUD-SHIELD, BELT (LONG)

$8.51

33

116-2704

ASM,SHIELD W/DECALS 36 VIKING

$372.99

34

1-323417

Washer-Belt Shield

$3.47

35

1-513547

SPACER

$13.19

36

116-7942-01

FORK-CASTER

$88.99

37

1-302054

Chute

product not available CALL FOR AVAILABILITY

$1.00

38

1-402109

ENGAGE ARM ASM W/ BUSHINGS

$110.99

39

1-303144

BEARING,POWDERED METAL

$5.75

40

323-4

Screw-HH 3/8-16 x 3/4

$4.31

41

132-4718

PULLEY-IDLER, FLAT

$34.09

42

1-322166

Cutter housing w/sheave

$602.99

43

1-323402

Spacer, bearing sheave

$3.31

44

1-323408

Dust shield

$17.59

45

1-808506

Retaining ring

$7.55

46

1-303543

Cutter housing bearing

$43.99

47

1-323315

Cutter housing

$102.99

49

103-1871

KIT,SHORT SPINDLE ASM

$108.99

50

1-323400

Spacer

$9.59

51

1-323399

SPACER,BEARING &SPINDLE

$9.95

52

1-323339

Washer

$5.75

53

1-403183

SHEAVE

$71.49

54

3219-6

Nut-Hex 5/8-18

$4.43

55

1-800861

SCREW-CAP, HH

$19.79

56

1-807267

Key-Machine 1/4 x 3/16 x 1 1/4

$2.98

57

1-323539

SPACER

$2.72

58

1-513208

Washer-Spring Disc 5/8

$9.95

59

1-303434

BUSHING-ENGAGEMENT

$15.39

60

1-303348

EYEBOLT-THREAD, LH

$7.07

61

1-303236

BODY-TURNBUCKLE

$21.99

62

1-303238

EYEBOLT-THREAD, RH

$7.07

63

1-321021

KIT,ASSIST ARM S/N 219,999 AND

$75.99

64

1-809011

3/8 x 3/4 Shoulder bolt

product not available CALL FOR AVAILABILITY

$0.01

65

1-303270

Assist arm linkage

product not available CALL FOR AVAILABILITY

$0.01

66

1-322153

CASTER/MOUNT ASM

product not available CALL FOR AVAILABILITY

$0.01

68

1-302203

SUPPORT ASM

$249.99

69

302-52

FITTING-GREASE

$7.31

70

1-303514

BEARING-FLANGED

$13.19

71

1-303314

SPACER-CASTER

$7.07

72

103-1236

Caster wheel assembly

$192.99

73

1-303542

O-Ring

$3.11



103-6580-S

SPK, BLADE LOW LIFT 18.0

$35.19



103-6582-S

SPK, BLADE MULCH 18.0

$32.99



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69
