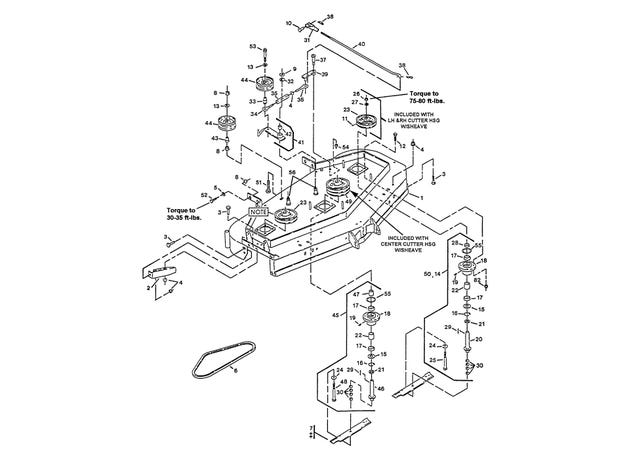

eXmark MN V48-14K-5 52" Mower Deck Cont.

1

1-402101

Deck weldmt w/decals and dogleg

product not available CALL FOR AVAILABILITY

$0.01

2

1-402057-01

Baffle wldmnt, discharge

$130.99

3

322-2

Screw-HH 5/16-18 x 5/8

$2.98

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

98-5975

Washer-Spring Disc 3/8

$3.71

6

1-403105

V-Belt, front deck

product not available CALL FOR AVAILABILITY

$0.01

7

103-1578-S

SPK, BLADE SOLID 18.0

$38.49

8

3290-357

Nut-Whizlock 3/8-16

$1.11

9

32151-103

E-Ring

$3.47

10

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

11

1-803310

SCREW-SET

$2.98

12

322-5

Screw-HH 5/16-18 x 1

$0.74

13

3256-24

Washer-3/8 SAE

$0.83

15

1-323408

Dust shield

$17.59

16

1-808506

Retaining ring

$7.55

17

1-303543

Cutter housing bearing

$43.99

18

1-323315

Cutter housing

$102.99

19

302-52

FITTING-GREASE

$7.31

20

103-1871

KIT,SHORT SPINDLE ASM

$108.99

21

1-323399

SPACER,BEARING &SPINDLE

$9.95

22

1-323400

Spacer

$9.59

23

1-403183

SHEAVE

$71.49

24

1-513208

Washer-Spring Disc 5/8

$9.95

25

1-800861

SCREW-CAP, HH

$19.79

26

3219-6

Nut-Hex 5/8-18

$4.43

27

1-323339

Washer

$5.75

28

1-323402

Spacer, bearing sheave

$3.31

29

1-807267

Key-Machine 1/4 x 3/16 x 1 1/4

$2.98

30

1-323539

SPACER

$2.72

31

1-303105

Yoke-Adjustable

$13.19

32

1-303352

WASHER-SPINDLE

$2.98

33

1-303434

BUSHING-ENGAGEMENT

$15.39

34

1-303348

EYEBOLT-THREAD, LH

$7.07

35

1-303236

BODY-TURNBUCKLE

$21.99

36

1-303238

EYEBOLT-THREAD, RH

$7.07

37

1-809011

3/8 x 3/4 Shoulder bolt

product not available CALL FOR AVAILABILITY

$0.01

38

1-806003

PIN-COTTER

$1.81

39

1-321021

KIT,ASSIST ARM S/N 219,999 AND

$75.99

40

1-403103

Linkage, 52" Viking

product not available CALL FOR AVAILABILITY

$0.01

41

1-402109

ENGAGE ARM ASM W/ BUSHINGS

$110.99

42

1-303144

BEARING,POWDERED METAL

$5.75

43

1-543879

BUSHING,IDLER

$15.39

44

132-4718

PULLEY-IDLER, FLAT

$34.09

45

1-402077

Cutter housing w/sheave (center)

product not available CALL FOR AVAILABILITY

$0.01

46

103-1869

KIT,LONG SPINDLE ASM

$110.99

47

1-323404

Spacer, bearing (center sheave)

$23.09

48

1-800862

SCRW,CAP HH 5/8-18X8.5

$28.59

49

1-403167

SHEAVE,DOUBLE GROOVE

product not available CALL FOR AVAILABILITY

$0.01

50

1-322166

Cutter housing w/sheave

$602.99

51

1-800029

BOLT,TAP HH3/8-16X2-1/4

$5.39

52

323-6

Screw-HH 3/8-16 x 1

$2.98

53

1-803003

BOLT,WHIZLCK3/8-16X13/4

product not available CALL FOR AVAILABILITY

$0.01

54

3296-29

Nut-Nyloc 5/16-18

$2.72

55

1-303542

O-Ring

$3.11

56

302-19

Zerk-1/4-28 Str

$2.85



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



103-6584-S

SPK, BLADE NOTCHED 18.00

$32.99



103-6582-S

SPK, BLADE MULCH 18.0

$32.99



103-6580-S

SPK, BLADE LOW LIFT 18.0

$35.19



MK52M-2

Mulching Kit

product not available CALL FOR AVAILABILITY

$1.00



1-840023

Prolock, retaining type

$19.79
