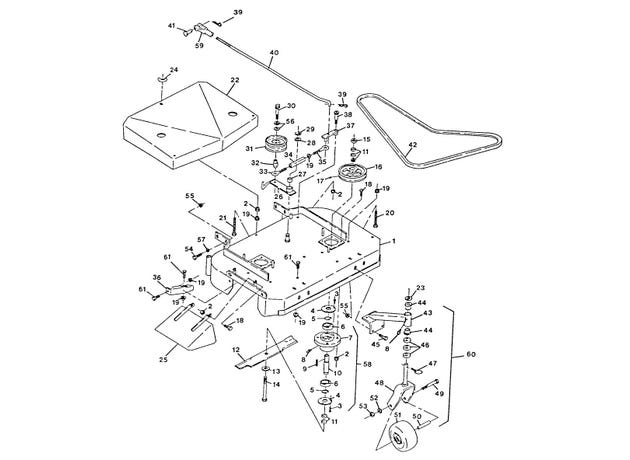

eXmark MN V36-14K-5 36" Mower Deck

1

1-322170

36" Front Deck w/ Baffles - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

2

3296-29

Nut-Nyloc 5/16-18

$2.72

3

1-801035

No.10-24 x 3/8" Machine Screw

$1.42

4

1-303523

Cutter Housing Cap

$8.27

5

1-808521

Ring retaining

$1.55

6

1-303543

Cutter housing bearing

$43.99

7

1-303189

Cutter Housing

product not available CALL FOR AVAILABILITY

$0.01

8

302-52

FITTING-GREASE

$7.31

9

13-2840

Key-Machine 1/4 x 1/4 x 1 1/4

$1.94

10

1-303187

Cutter Spindle 5 1/8"

$50.59

11

1-323539

SPACER

$2.72

12

103-6584-S

SPK, BLADE NOTCHED 18.00

$32.99

13

3256-7

Washer-5/8 Std

$1.94

14

1-800860

5/8"-18 x 7 1/4" Grade 5 Hex Hd. Capscrew

product not available CALL FOR AVAILABILITY

$0.01

15

3219-6

Nut-Hex 5/8-18

$4.43

16

1-303073

Pulley

$138.99

17

1-803310

SCREW-SET

$2.98

18

322-5

Screw-HH 5/16-18 x 1

$0.74

19

32128-20

Nut-Whizlock 5/16-18

$1.39

20

1-800021

5/16-18 x 3" Tap Bolt

$3.24

21

1-800020

Tapbolt -.31-18 x 3.5 HH

$8.27

22

1-302164

Shield Weldment - 302162 w/ Decals

product not available CALL FOR AVAILABILITY

$0.01

23

1-513338

WASHER-FLAT

$4.55

24

1-803014

5/16" - 18 Wingnut

product not available CALL FOR AVAILABILITY

$0.01

25

1-302054

Chute

product not available CALL FOR AVAILABILITY

$1.00

26

1-402109

ENGAGE ARM ASM W/ BUSHINGS

$110.99

27

1-303144

BEARING,POWDERED METAL

$5.75

28

1-303352

WASHER-SPINDLE

$2.98

29

32151-103

E-Ring

$3.47

30

1-803003

BOLT,WHIZLCK3/8-16X13/4

product not available CALL FOR AVAILABILITY

$0.01

31

132-4718

PULLEY-IDLER, FLAT

$34.09

32

1-303434

BUSHING-ENGAGEMENT

$15.39

33

1-303348

EYEBOLT-THREAD, LH

$7.07

34

1-303236

BODY-TURNBUCKLE

$21.99

35

1-303238

EYEBOLT-THREAD, RH

$7.07

36

1-302189-01

BAFFLE-DOGLEG

$50.59

37

1-321021

KIT,ASSIST ARM S/N 219,999 AND

$75.99

38

1-809011

3/8 x 3/4 Shoulder bolt

product not available CALL FOR AVAILABILITY

$0.01

39

1-806003

PIN-COTTER

$1.81

40

1-303270

Assist arm linkage

product not available CALL FOR AVAILABILITY

$0.01

41

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

42

1-303499-SL

BELT,BLADE DRIVE 36 WITH SLEEVE

$78.09

43

1-302203

SUPPORT ASM

$249.99

44

1-303514

BEARING-FLANGED

$13.19

45

323-4

Screw-HH 3/8-16 x 3/4

$4.31

46

1-303314

SPACER-CASTER

$7.07

47

1-809020

PIN

$12.09

48

1-302200-01

Caster Weldment - Mid-Size

product not available CALL FOR AVAILABILITY

$0.01

49

325-20

Screw-HH 1/2-13 x 6

$8.51

50

1-513547

SPACER

$13.19

51

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

52

3253-7

WASHER-LOCK

$1.25

53

3217-9

NUT-HH

$0.74

54

323-6

Screw-HH 3/8-16 x 1

$2.98

55

3290-357

Nut-Whizlock 3/8-16

$1.11

56

3256-24

Washer-3/8 SAE

$0.83

57

98-5975

Washer-Spring Disc 3/8

$3.71

58

1-302030

Cutter Housing Complete

$151.13

59

1-303105

Yoke-Adjustable

$13.19

60

1-302201

Caster, 9" Smooth - Complete

product not available CALL FOR AVAILABILITY

$0.01

61

322-2

Screw-HH 5/16-18 x 5/8

$2.98



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



1-840023

Prolock, retaining type

$19.79



103-6580-S

SPK, BLADE LOW LIFT 18.0

$35.19



103-6582-S

SPK, BLADE MULCH 18.0

$32.99



1-513809

BEARING

$36.29



1-513810

BUSHING

$6.59



1-513808

TIRE

$43.99
