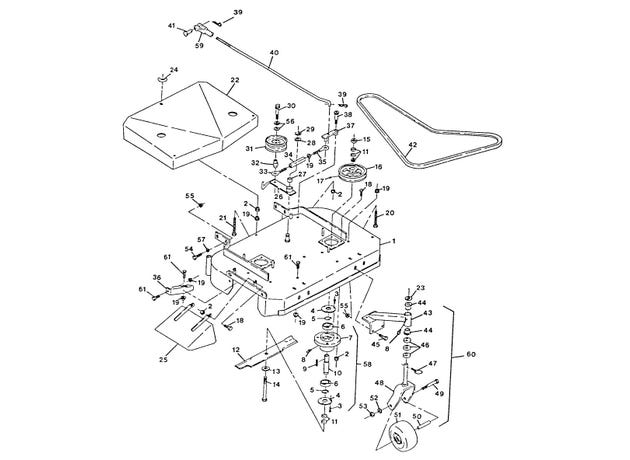

eXmark MN V36-14K-5 36" Mower Deck

#
Part #
Item
Price
Qty
Add
1
1-302206
36" Front Deck w/ Baffles

product not available CALL FOR AVAILABILITY

$0.01
2
1-804256
XREF 3296-29

product not available CALL FOR AVAILABILITY

$0.01
3
1-801035
No.10-24 x 3/8" Machine Screw
$1.42
4
1-303523
Cutter Housing Cap
$8.27
5
1-808521
Ring retaining
$1.55
6
1-303057
Cutter Housing Bearing

product not available CALL FOR AVAILABILITY

$0.01
7
1-303189
Cutter Housing

product not available CALL FOR AVAILABILITY

$0.01
8
1-811001
ZERK,STRAIGHT NPT 1/8

product not available CALL FOR AVAILABILITY

$0.01
9
1-807263
Key, 1/4 Sq. x 1-1/4

product not available CALL FOR AVAILABILITY

$0.01
10
1-303187
Cutter Spindle 5 1/8"
$50.59
11
1-303164
Spacer, blade drive

product not available CALL FOR AVAILABILITY

$0.01
12
1-303146
Ultra High Lift Blade 18"

product not available CALL FOR AVAILABILITY

$0.01
13
1-805268
Washer, 5/8 standard flat

product not available CALL FOR AVAILABILITY

$0.01
14
1-800860
5/8"-18 x 7 1/4" Grade 5 Hex Hd. Capscrew

product not available CALL FOR AVAILABILITY

$0.01
15
1-804510
XREF 3219-6

product not available CALL FOR AVAILABILITY

$0.01
16
1-303073
Pulley
$138.99
17
1-803310
SCREW-SET
$2.98
18
1-800273
SCRW,CAP HH 5/16-18X1

product not available CALL FOR AVAILABILITY

$0.01
19
1-809001
Nut-Whizlock

product not available CALL FOR AVAILABILITY

$0.01
20
1-800021
5/16-18 x 3" Tap Bolt
$3.24
21
1-800020
Tapbolt -.31-18 x 3.5 HH
$8.27
22
1-302164
Shield Weldment - 302162 w/ Decals

product not available CALL FOR AVAILABILITY

$0.01
23
1-513338
WASHER-FLAT
$4.55
24
1-803014
5/16" - 18 Wingnut

product not available CALL FOR AVAILABILITY

$0.01
25
1-302054
Chute

product not available CALL FOR AVAILABILITY

$1.00
26
1-302129
XREF 1-402109

product not available CALL FOR AVAILABILITY

$0.01
27
1-303144
BEARING,POWDERED METAL
$5.75
28
1-303352
WASHER-SPINDLE
$2.98
29
1-808505
RING,SNAP E WLDS 5133-87

product not available CALL FOR AVAILABILITY

$0.01
30
1-803003
BOLT,WHIZLCK3/8-16X13/4

product not available CALL FOR AVAILABILITY

$0.01
31
1-603843
PULLEY-IDLER
$22.11
32
1-303434
BUSHING-ENGAGEMENT
$15.39
33
1-303348
EYEBOLT-THREAD, LH
$7.07
34
1-303236
BODY-TURNBUCKLE
$21.99
35
1-303238
EYEBOLT-THREAD, RH
$7.07
36
1-302189-01
BAFFLE-DOGLEG
$50.59
37
1-302198
Assist arm

product not available CALL FOR AVAILABILITY

$0.01
38
1-809011
3/8 x 3/4 Shoulder bolt

product not available CALL FOR AVAILABILITY

$0.01
39
1-806003
PIN-COTTER
$1.81
40
1-303270
Assist arm linkage

product not available CALL FOR AVAILABILITY

$0.01
41
1-808280
Pin-Clevis 5/16 x 1 49/64
$2.98
42
1-303499
Drive belt 36" Model

product not available CALL FOR AVAILABILITY

$0.01
43
1-302194
Caster wheel support wldmnt

product not available CALL FOR AVAILABILITY

$0.01
44
1-303514
BEARING-FLANGED
$13.19
45
1-800290
3/8-16 x 3/4 HHCS

product not available CALL FOR AVAILABILITY

$0.01
46
1-303314
SPACER-CASTER
$7.07
47
1-809020
PIN
$12.09
48
1-302200-01
Caster Weldment - Mid-Size

product not available CALL FOR AVAILABILITY

$0.01
49
1-800334
Screw, 1/2-13 x 6 (72")

product not available CALL FOR AVAILABILITY

$0.01
50
1-513547
SPACER
$13.19
51
1-513648
WHEEL AND TIRE ASM

product not available CALL FOR AVAILABILITY

$0.01
52
1-805008
1/2 spring lockwasher

product not available CALL FOR AVAILABILITY

$0.01
53
1-804509
1/2-13 Hex nut

product not available CALL FOR AVAILABILITY

$0.01
54
1-800292
3/8-16 x 1 HHCS

product not available CALL FOR AVAILABILITY

$0.01
55
1-809007
3/8-16 Whizlock Nut

product not available CALL FOR AVAILABILITY

$0.01
56
1-805259
Washer-Flat

product not available CALL FOR AVAILABILITY

$0.01
57
1-303327
XREF 98-5975

product not available CALL FOR AVAILABILITY

$0.01
58
1-302030
Cutter Housing Complete
$151.13
59
1-303105
Yoke-Adjustable
$13.19
60
1-302201
Caster, 9" Smooth - Complete

product not available CALL FOR AVAILABILITY

$0.01
61
1-800270
SCRW,CAP HH 5/16-18X5/8

product not available CALL FOR AVAILABILITY

$0.01

1-840022
Pro-Lock,Nut Type (.5cc Tube)
$18.69

1-840023
Prolock, retaining type
$19.79

1-303283
1/4" x 18" High Lift Blade

product not available CALL FOR AVAILABILITY

$0.01

1-303439
Blade- Low Lift (36")

product not available CALL FOR AVAILABILITY

$0.01

1-303495
Blade - Mulching 36" Deck.

product not available CALL FOR AVAILABILITY

$0.01

1-302203
SUPPORT ASM
$249.99

1-513807
1-513648

product not available CALL FOR AVAILABILITY

$0.01

1-513808
TIRE
$43.99

1-513809
BEARING
$36.29

1-513810
BUSHING
$6.59
