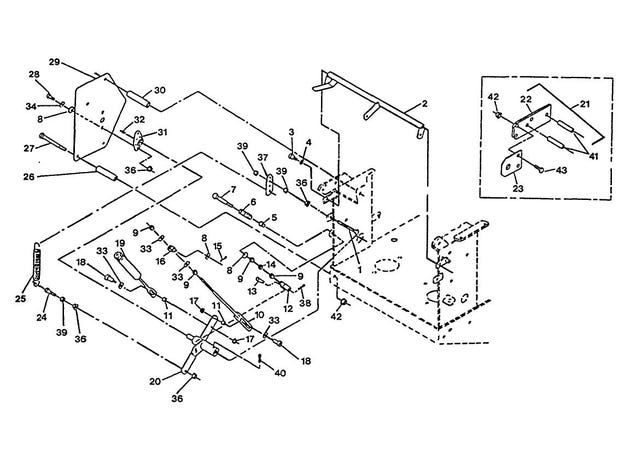

eXmark MN V48-16BV-H Engine Deck Group Cont.

1

1-800021

5/16-18 x 3" Tap Bolt

$3.24

2

1-322096-01

Crank Weldment

product not available CALL FOR AVAILABILITY

$0.01

3

1-809056

SCREW-HSH SHLDR

$8.51

4

3256-24

Washer-3/8 SAE

$0.83

5

1-603735

BUSHING-FLANGED

$7.07

6

1-603807

Spring

$3.83

7

1-603737

Bolt-Neutral Return

$9.59

8

3256-2

Washer-1/4 Std

$0.59

9

3219-2

Nut-Hex 5/16-24

$1.11

10

1-613206

Rod, control arm

$18.69

11

1-603903

SPACER

$5.99

12

1-303105

Yoke-Adjustable

$13.19

13

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

14

3220-2

Nut-Jam 5/16-24

$1.68

15

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

16

126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.75

17

32128-33

Nut-Whizlock 1/4-20

$0.97

18

1-809057

SCREW-HSH

product not available CALL FOR AVAILABILITY

$0.01

19

1-612081-03

Housing

$165.99

20

1-322092-01

Left Hand Arm Weldment

$102.99

21

1-301022

Sulky hitch kit, (Vik Hydro)

product not available CALL FOR AVAILABILITY

$1.00

22

1-373036-01

Mount, hitch

$55.96

23

1-323238

Bracket, hitch adapter

product not available CALL FOR AVAILABILITY

$1.00

24

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

25

1-603693

SPRING-EXTENSION

$15.39

26

1-323197-01

SPACER-SHIELD

$8.87

27

323-16

SCREW-HH

$3.47

28

322-3

Screw-HH 5/16-18 x 3/4

$1.11

29

1-323179-01

Shield - Hydro Control

product not available CALL FOR AVAILABILITY

$0.01

30

1-323195-01

Spacer-Shield

$8.87

31

1-543514

Flange mntg (side)

$34.09

32

302-19

Zerk-1/4-28 Str

$2.85

33

3256-23

Washer-5/16 SAE

$2.59

34

1-805005

Washer-Lock 5/16 Heavy

$1.55

35

3256-3

Washer-5/16 Std

$0.74

36

32128-20

Nut-Whizlock 5/16-18

$1.39

37

1-613089

TAB-SPRING, EXTENSION

$9.95

38

1-806003

PIN-COTTER

$1.81

39

3296-29

Nut-Nyloc 5/16-18

$2.72

40

1-803022

Setscrew-5/16-18 x 5/8

$2.98

41

1-323240-01

Spacer, shield

product not available CALL FOR AVAILABILITY

$0.01

42

3290-357

Nut-Whizlock 3/8-16

$1.11

43

323-6

Screw-HH 3/8-16 x 1

$2.98



1-322094-01

Right Hand Arm Weldment (Not Shown)

$102.99



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69
