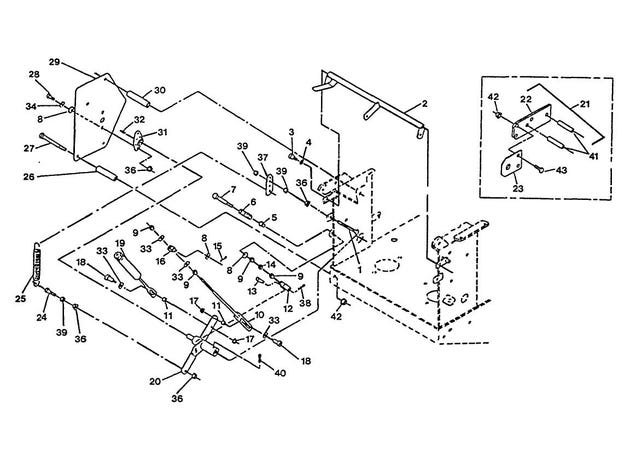

eXmark MN V48-16BV-H Engine Deck Group Cont.

#
Part #
Item
Price
Qty
Add
1
1-800021
5/16-18 x 3" Tap Bolt
$3.11
2
1-322096-01
Crank Weldment

product not available CALL FOR AVAILABILITY

$0.01
3
1-809056
SCREW-HSH SHLDR
$8.03
4
1-805259
Washer-Flat

product not available CALL FOR AVAILABILITY

$0.01
5
1-603735
BUSHING-FLANGED
$6.71
6
1-603807
Spring
$3.59
7
1-603737
Bolt-Neutral Return
$9.59
8
1-805256
1/4 STD. Flatwasher

product not available CALL FOR AVAILABILITY

$0.01
9
1-804521
Nut, 5/16-24

product not available CALL FOR AVAILABILITY

$0.01
10
1-602742
Rod - Control Arm Weldment

product not available CALL FOR AVAILABILITY

$0.01
11
1-603903
SPACER
$5.63
12
1-303105
Yoke-Adjustable
$12.09
13
1-808280
Pin-Clevis 5/16 x 1 49/64
$2.85
14
1-804758
Nut, jam 5/16-24

product not available CALL FOR AVAILABILITY

$0.01
15
1-806753
Pin, cotter 3/32 x 1/2

product not available CALL FOR AVAILABILITY

$0.01
16
1-603676
SWIVEL-ADJUSTABLE, SHORT
$15.57
17
1-809012
1/4-20 Whizlock Nut

product not available CALL FOR AVAILABILITY

$0.01
18
1-809057
SCREW-HSH

product not available CALL FOR AVAILABILITY

$0.01
19
1-612081-03
Housing
$156.99
20
1-322092-01
Left Hand Arm Weldment
$96.99
21
1-301022
Sulky hitch kit, (Vik Hydro)

product not available CALL FOR AVAILABILITY

$1.00
22
1-373036-01
Mount, hitch
$55.96
23
1-323238
Bracket, hitch adapter

product not available CALL FOR AVAILABILITY

$1.00
24
1-800274
5/16-18 x 1 1/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
25
1-603693
SPRING-EXTENSION
$14.29
26
1-323197-01
SPACER-SHIELD
$8.39
27
1-800302
SCRW,CAP HH 3/8-16X4

product not available CALL FOR AVAILABILITY

$0.01
28
1-800271
5/16-18 x 3/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
29
1-323179-01
Shield - Hydro Control

product not available CALL FOR AVAILABILITY

$0.01
30
1-323195-01
Spacer-Shield
$8.39
31
1-543514
Flange mntg (side)
$34.09
32
1-811006
Zerk, 1/8 - 28 straight

product not available CALL FOR AVAILABILITY

$0.01
33
1-805257
Washer, 5/16 (SAE)

product not available CALL FOR AVAILABILITY

$0.01
34
1-805005
Washer-Lock 5/16 Heavy
$1.42
35
1-805258
5/16 Std. flat washer

product not available CALL FOR AVAILABILITY

$0.01
36
1-809001
Nut-Whizlock

product not available CALL FOR AVAILABILITY

$0.01
37
1-613089
TAB-SPRING, EXTENSION
$9.35
38
1-806003
PIN-COTTER
$1.68
39
1-804256
XREF 3296-29

product not available CALL FOR AVAILABILITY

$0.01
40
1-803022
Setscrew-5/16-18 x 5/8
$2.85
41
1-323240-01
Spacer, shield

product not available CALL FOR AVAILABILITY

$0.01
42
1-809007
3/8-16 Whizlock Nut

product not available CALL FOR AVAILABILITY

$0.01
43
1-800292
3/8-16 x 1 HHCS

product not available CALL FOR AVAILABILITY

$0.01

1-322094-01
Right Hand Arm Weldment (Not Shown)
$96.99

1-840022
Pro-Lock,Nut Type (.5cc Tube)
$17.59
