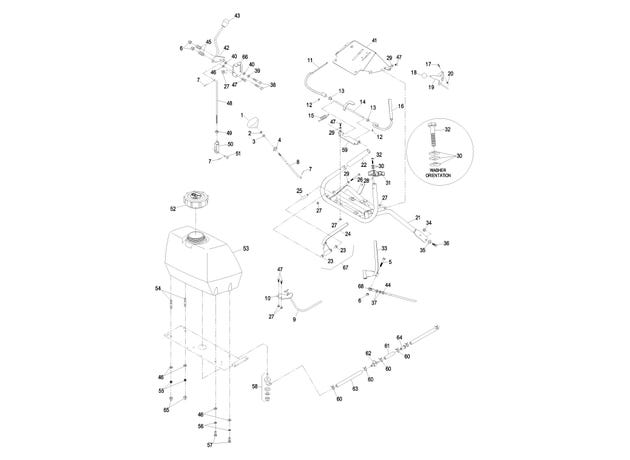

eXmark MN VH4815KAC ECS Upper Handle And Controls

1

1-323134

Knob-Push / Pull

$28.59

2

3218-2

Nut-Jam 5/16-18

$0.59

3

1-323143

Bearing-Nylon

$7.19

4

1-323142

Nut-Push 1/2

$2.98

5

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

6

3296-29

Nut-Nyloc 5/16-18

$2.72

7

1-806003

PIN-COTTER

$1.81

8

103-2193

LINKAGE,BLADE PUSH/PULL

$24.19

9

103-1796

Cable-Choke

$45.09

10

103-1797-01

Bracket-Cable, Choke

$9.95

11

116-4079

WLD,LH OPC LEVER

$35.19

12

1-803322

SCREW-SET

$1.55

13

1-303365

BUSHING-NYLON

$5.75

14

103-0769-03

Rod weldment, OPC

$43.99

15

1-303363

SPRING-EXTENSION

$7.07

16

116-4080

WLD,RH OPC LEVER

$35.19

17

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

18

1-513592

Knob-Ball Red

$7.07

19

1-633696

THROTTLE CABLE ASM

$63.79

20

3296-2

Nut-Nyloc #10-24

$2.46

21

103-2194-03

WLD,VH ECS HANDLE

$633.99

22

103-0815

GRIP-BAR, HANDLE

$12.09

23

1-413152

BUSHING-SLEEVE

$2.98

24

103-2514

Asm, Drive Lever LH

$118.99

25

103-0027

BUSHING-LEVER, DRIVE

$20.89

26

321-14

SCREW-HH

$5.39

27

32128-33

Nut-Whizlock 1/4-20

$0.97

28

126-2925

PIN-SPRING

$1.55

29

3256-22

Washer-1/4 SAE

$0.59

30

1-303435

Washer-Spring Disc 1/4

$1.81

31

103-1371

Thumb latch asm RH

$30.79

32

103-0235

SCREW-HH

$1.55

33

116-4082

WLD,RH DRIVE LEVER

$52.79

34

3290-357

Nut-Whizlock 3/8-16

$1.11

35

98-5975

Washer-Spring Disc 3/8

$3.71

36

323-6

Screw-HH 3/8-16 x 1

$2.98

37

3220-3

Nut-Jam 3/8-24

$0.44

38

322-10

SCREW-HH

$1.11

39

1-603716

Washer-Friction

$5.75

40

1-323244

Washer-Friction

$8.03

41

103-2912

Asm,console w/decals

$185.99

42

116-8632

Lever-Shift w/Grip

$63.79

43

103-0423

Knob .38-16 nyloc

$24.19

44

3219-3

Nut-Hex 3/8-24

$2.07

45

1-323245

Spring-Compression

$7.07

46

3256-23

Washer-5/16 SAE

$2.59

47

321-3

Screw-HH 1/4-20 x 5/8

$1.55

48

1-323522

Rod-Control, Speed

$15.39

49

3220-2

Nut-Jam 5/16-24

$1.68

50

1-303105

Yoke-Adjustable

$13.19

51

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

52

109-0346

CAP-FUEL, GAS

$21.99

53

103-2893

Asm, Fuel Tank W/Fitting

$258.99

54

1-633023

Stud-Fuel Tank

$7.07

55

1-633349

Spring-Compression

$5.75

56

1-805005

Washer-Lock 5/16 Heavy

$1.55

57

322-3

Screw-HH 5/16-18 x 3/4

$1.11

58

103-2605

Fitting-Fuel Bulkhead W/Strainer

$37.39

59

103-0489-03

Bracket, opc axle

$24.19

60

1-303077

Clamp-Fuel Line

$1.55

61

1-603955

HOSE-FUEL

$5.75

62

1-603770

Valve-Fuel

$9.11

63

1-303022

HOSE-FUEL

$5.39

65

3296-47

Nut-Nyloc 5/16-18 Thin

$4.31

66

103-0503

Bracket,shifter slide

$15.39

67

103-2513

Asm, Drive Lever RH

$118.99

68

103-2463

JOINT-BALL, END

$28.59



103-1372

Thumb latch asm LH

$30.79
