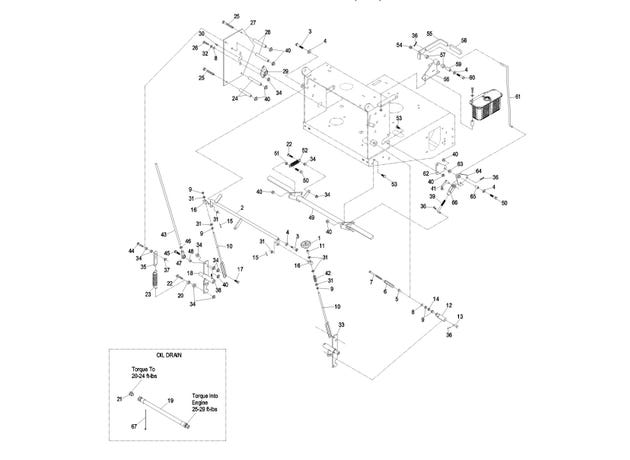

eXmark MN VH17KA483CA Engine Deck Group (cont.)

1

1-413151

KNOB-TRACKING

$9.59

2

1-412203-01

Crank-Control, Speed

$146.99

3

1-809056

SCREW-HSH SHLDR

$8.51

4

3256-24

Washer-3/8 SAE

$0.83

5

1-603735

BUSHING-FLANGED

$7.07

6

103-0265

Spring, neutral return

$6.47

7

1-603737

Bolt-Neutral Return

$9.59

8

3256-2

Washer-1/4 Std

$0.59

9

3219-2

Nut-Hex 5/16-24

$1.11

10

1-413350

LINK-CONTROL, SPEED

$15.39

11

1-603903

SPACER

$5.99

12

1-303105

Yoke-Adjustable

$13.19

13

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

14

3220-2

Nut-Jam 5/16-24

$1.68

15

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

16

1-603676

SWIVEL-ADJUSTABLE, SHORT

$15.57

17

1-403180

Screw-HH 5/16-18 x 1 1/4 Sp

$2.98

18

103-1190-01

Shaft-Control, LH

$159.99

19

109-0877

Asm, Oil Drain Hose W/Plug

product not available CALL FOR AVAILABILITY

$0.01

20

3218-2

Nut-Jam 5/16-18

$0.59

21

109-1012

Plug

$8.51

22

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

23

1-603693

SPRING-EXTENSION

$15.39

24

1-323197-01

SPACER-SHIELD

$8.87

25

323-16

SCREW-HH

$3.47

26

322-3

Screw-HH 5/16-18 x 3/4

$1.11

27

110-4897-01

SHIELD-CONTROL

$95.99

28

1-323195-01

Spacer-Shield

$8.87

29

1-633102

Bearing-Flanged

$18.69

30

302-19

Zerk-1/4-28 Str

$2.85

31

3256-23

Washer-5/16 SAE

$2.59

32

1-805005

Washer-Lock 5/16 Heavy

$1.55

33

103-4796-01

SHAFT-CONTROL, RH

$125.99

34

32128-20

Nut-Whizlock 5/16-18

$1.39

35

1-613089

TAB-SPRING, EXTENSION

$9.95

36

1-806003

PIN-COTTER

$1.81

37

3296-29

Nut-Nyloc 5/16-18

$2.72

38

1-803022

Setscrew-5/16-18 x 5/8

$2.98

39

1-413489

Linkage-Lower

$23.09

40

3290-357

Nut-Whizlock 3/8-16

$1.11

41

103-2399

Pin-Clevis Spring 3/8

$7.07

42

1-323245

Spring-Compression

$7.07

43

103-1734

LINKAGE,DRIVE (PLT)

$30.79

44

1-800016

BOLT-TAP, HH

$1.68

45

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

46

3220-16

Nut-Jam 3/8-24 LH

$2.33

47

103-1167

JOINT-BALL END, .38x.38FE LH

$32.99

48

103-1166

SPACER-TUBE, PUMP LINK

$7.19

49

103-2085-03

BRAKE ASM

product not available CALL FOR AVAILABILITY

$0.01

50

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

51

3218-3

NUT-JAM

$0.74

52

1-323161

SPRING-IDLER

$12.09

53

323-4

Screw-HH 3/8-16 x 3/4

$4.31

54

3296-39

Nut-Nyloc 3/8-16

$2.98

55

103-3495

Lever, Park Brake W/Decals

$82.49

56

1-414504

Bracket ASM

$75.99

57

1-413347

SLEEVE-BUSHING

$2.98

58

1-303020

GRIP-LEVER

$2.98

59

1-413344

Bushing-Pivot

$19.79

60

323-10

Screw-HH 3/8-16 x 2

$0.97

61

1-413496

Linkage-Upper

$61.59

62

1-413497

Bellcrank

$36.29

63

32128-21

Nut-3/8-16 Flanged Side Lock

$0.97

64

1-414508

Bellcrank ASM

$63.79

65

1-303548

Bushing-Plastic

$5.75

66

1-633131

YOKE-LINKAGE, BRAKE

$16.49

67

1-303287

Tie-Cable 5 1/2 (Small)

$1.55



103-2004-03

BRAKE

product not available CALL FOR AVAILABILITY

$0.01
