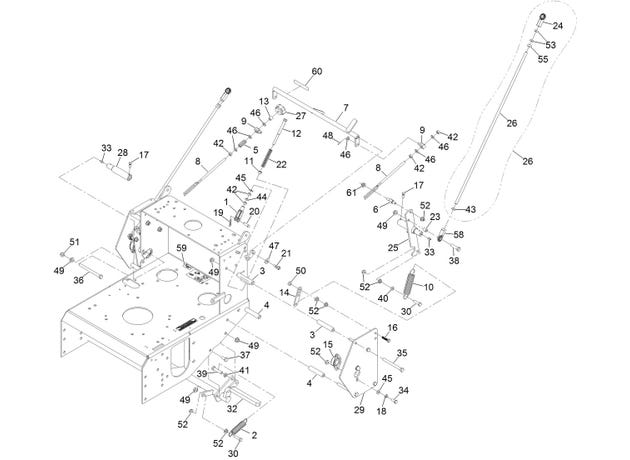

eXmark MN VHS481GKA36200 Engine Deck and Speed Control Assembly

1

1-303105

Yoke-Adjustable

$13.19

2

1-323161

SPRING-IDLER

$12.09

3

1-323195-01

Spacer-Shield

$8.87

4

1-323197-01

SPACER-SHIELD

$8.87

5

1-323245

Spring-Compression

$7.07

6

126-0610

PIN, MOTION CONTROL

$7.07

7

1-412203-01

Crank-Control, Speed

$146.99

8

1-413350

LINK-CONTROL, SPEED

$15.39

9

126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.75

10

1-603693

SPRING-EXTENSION

$15.39

11

1-603735

BUSHING-FLANGED

$7.07

12

1-603737

Bolt-Neutral Return

$9.59

13

1-603903

SPACER

$5.99

14

1-613089

TAB-SPRING, EXTENSION

$9.95

15

1-633102

Bearing-Flanged

$18.69

16

1-800016

BOLT-TAP, HH

$1.68

17

1-803022

Setscrew-5/16-18 x 5/8

$2.98

18

1-805005

Washer-Lock 5/16 Heavy

$1.55

19

1-806003

PIN-COTTER

$1.81

20

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

21

1-809056

SCREW-HSH SHLDR

$8.51

22

103-0265

Spring, neutral return

$6.47

23

103-1166

SPACER-TUBE, PUMP LINK

$7.19

24

103-2463

JOINT-BALL, END

$28.59

25

103-1190-01

Shaft-Control, LH

$159.99

26

116-3415

DRIVE LINK ASM

$45.09

26

103-1734

LINKAGE,DRIVE (PLT)

$30.79

27

103-3060

KNOB-TRACKING

$7.55

28

103-4796-01

SHAFT-CONTROL, RH

$125.99

29

110-4897-01

SHIELD-CONTROL

$95.99

30

116-3515

SCREW-HH, SPECIAL

$1.42

32

126-1599

SHAFT-CROSS, BRAKE

$161.99

33

302-19

Zerk-1/4-28 Str

$2.85

34

322-3

Screw-HH 5/16-18 x 3/4

$1.11

35

323-16

SCREW-HH

$3.47

36

323-23

SCREW-HH

$6.11

37

323-4

Screw-HH 3/8-16 x 3/4

$4.31

38

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

39

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

40

3218-2

Nut-Jam 5/16-18

$0.59

41

3218-3

NUT-JAM

$0.74

42

3219-2

Nut-Hex 5/16-24

$1.11

43

3220-16

Nut-Jam 3/8-24 LH

$2.33

44

3220-2

Nut-Jam 5/16-24

$1.68

45

3256-2

Washer-1/4 Std

$0.59

46

3256-23

Washer-5/16 SAE

$2.59

47

3256-24

Washer-3/8 SAE

$0.83

48

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

49

3290-357

Nut-Whizlock 3/8-16

$1.11

50

3296-29

Nut-Nyloc 5/16-18

$2.72

51

3296-39

Nut-Nyloc 3/8-16

$2.98

52

32128-20

Nut-Whizlock 5/16-18

$1.39

53

3220-3

Nut-Jam 3/8-24

$0.44

55

3219-3

Nut-Hex 3/8-24

$2.07

58

103-1167

JOINT-BALL END, .38x.38FE LH

$32.99

59

126-4345

DECAL-PATENT

$1.55

60

116-7918

DECAL-TRACKING ADJUSTMENT

$24.19

61

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25
