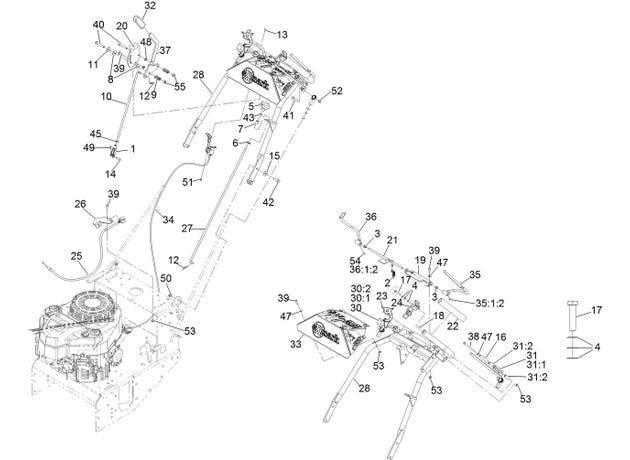

eXmark MN VHS481GKA36200 Controls Assembly

1

1-303105

Yoke-Adjustable

$13.19

2

1-303363

SPRING-EXTENSION

$7.07

3

1-303365

BUSHING-NYLON

$5.75

4

1-303435

Washer-Spring Disc 1/4

$1.81

5

1-323134

Knob-Push / Pull

$28.59

6

1-323142

Nut-Push 1/2

$2.98

7

1-323143

Bearing-Nylon

$7.19

8

1-323244

Washer-Friction

$8.03

9

1-323245

Spring-Compression

$7.07

10

1-323522

Rod-Control, Speed

$15.39

11

1-603716

Washer-Friction

$5.75

12

1-806003

PIN-COTTER

$1.81

13

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

14

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

15

98-5975

Washer-Spring Disc 3/8

$3.71

16

103-0027

BUSHING-LEVER, DRIVE

$20.89

17

103-0235

SCREW-HH

$1.55

18

126-2925

PIN-SPRING

$1.55

19

103-0489-03

Bracket, opc axle

$24.19

20

103-0503

Bracket,shifter slide

$15.39

21

103-0769-03

Rod weldment, OPC

$43.99

22

103-0815

GRIP-BAR, HANDLE

$12.09

23

103-1371

Thumb latch asm RH

$30.79

24

103-1372

Thumb latch asm LH

$30.79

25

103-1796

Cable-Choke

$45.09

26

103-1797-01

Bracket-Cable, Choke

$9.95

27

103-2193

LINKAGE,BLADE PUSH/PULL

$24.19

28

103-2194-03

WLD,VH ECS HANDLE

$633.99

30

103-2513

Asm, Drive Lever RH

$118.99

30:1

116-4082

WLD,RH DRIVE LEVER

$52.79

31

103-2514

Asm, Drive Lever LH

$118.99

31:1

116-4081

WLD,LH DRIVE LEVER

$52.79

31:2

126-9366

BUSHING, SLEEVE

$3.24

32

103-5994

GRIP-HANDLE, STEERING

$14.29

33

109-4931

ASM,CONSOLE W/DECALS

$248.99

34

116-2426

CONTROL, THROTTLE

$47.29

35

116-4079

WLD,LH OPC LEVER

$35.19

36

116-4080

WLD,RH OPC LEVER

$35.19

37

116-7682

Lever-Shift

product not available CALL FOR AVAILABILITY

$0.01

38

321-14

SCREW-HH

$5.39

39

321-3

Screw-HH 1/4-20 x 5/8

$1.55

40

322-10

SCREW-HH

$1.11

41

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

42

323-6

Screw-HH 3/8-16 x 1

$2.98

43

3218-2

Nut-Jam 5/16-18

$0.59

45

3220-2

Nut-Jam 5/16-24

$1.68

47

3256-22

Washer-1/4 SAE

$0.59

48

3256-23

Washer-5/16 SAE

$2.59

49

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

50

3290-357

Nut-Whizlock 3/8-16

$1.11

51

3296-2

Nut-Nyloc #10-24

$2.46

53

32128-33

Nut-Whizlock 1/4-20

$0.97

54

1-803322

SCREW-SET

$1.55

55

3296-29

Nut-Nyloc 5/16-18

$2.72
