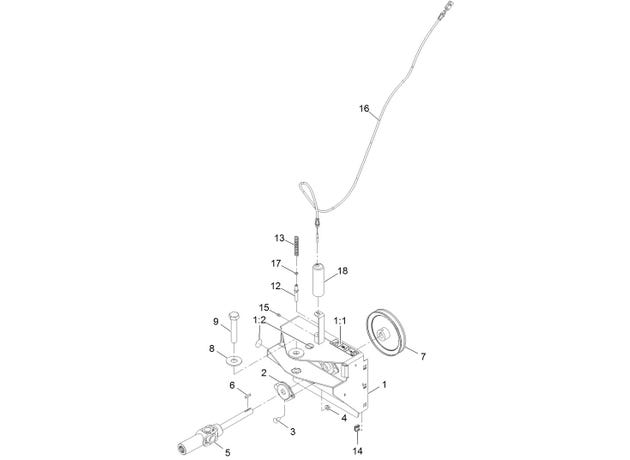

eXmark MN BR270KC36 Mounting Assembly

1

116-8122

BROOM MOUNTING FRAME ASM

$567.99

1:1

112-9028

DECAL-COVER, MISSING

$20.89

1:2

115-2903

DECAL-GREASE

$7.43

2

116-8103

BEARING-SHAFT

$90.99

3

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

116-8104

SHAFT-DRIVE

$561.99

6

116-8105

KEY-ROUND END

$39.59

7

116-7930

PULLEY-IMPELLER

$138.99

8

3256-8

Washer

$4.19

9

3216-7

SCREW-HH

$21.99

12

116-8106

PIN-SWING

$75.89

13

116-8107

SPRING-COMPRESSION

$57.19

14

3290-496

NUT-RETAINER

$7.19

15

302-19

Zerk-1/4-28 Str

$2.85

16

116-7671

CABLE-ANGLE, BROOM

$50.59

17

3217-26

NUT-HEX

$2.07

18

116-8108

CAP

$26.39
