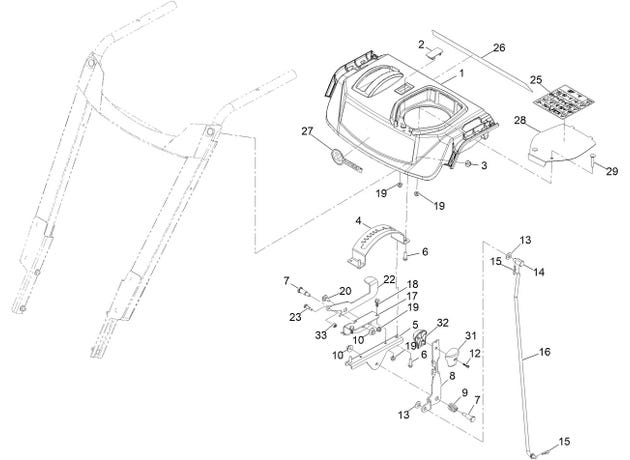

Control Panel Assembly

1

144-1249

PANEL-CONTROL

product not available Product is currently not available

$0.00

2

99-7420

PLUG-HOLE

$8.03

3

138-8401

NUT-HF

$1.42

4

137-6187-03

GATE-SHIFT

$8.63

5

137-6188-03

BRACKET-SHIFT

$6.71

6

137-3099

SCREW-PLASTITE, HWH

$1.42

7

137-3103

SCREW-SHOULDER, HH

$1.68

8

137-6231-03

SELECTOR-SPEED

$9.71

9

136-7121

SPRING-COMPRESSION

$2.98

10

137-3038

NUT-HF

$5.39

12

94-4496

SCREW-PPH

$1.42

13

115-1166

WASHER-PLAIN

$4.79

14

136-7193

TRUNNION-ROD

$8.15

15

137-3083

PIN-HAIR

$1.42

16

137-6225

ROD-SHIFT

$16.49

17

139-9919-03

BRACKET-LEVER, BROOM ANGLE

$15.39

18

137-3111

SCREW-HHF

$1.39

19

119-4040

NUT-HF, NI

$0.74

20

92-9698

SCREW-SHOULDER

product not available Product is currently not available

$0.00

22

139-9920-03

LEVER-BROOM ANGLE

$16.49

23

139-1709

SCREW-SHOULDER

$2.46

25

135-2867

DECAL-CONSOLE

$13.19

26

144-0316

DECAL-CONTROL PANEL

product not available Product is currently not available

$0.00

27

142-5433

DECAL-Z-SWEEP LOGO

product not available Product is currently not available

$0.00

28

139-9927-03

PLATE-COVER, CONT PNL

$24.19

29

137-3011

BOLT-CARR

$1.55

31

105-9999

KNOB-SHIFT, LH

$8.03

32

106-4423

KNOB-SHIFT, RH

$8.03

33

138-0719

NUT-HF

$1.42
