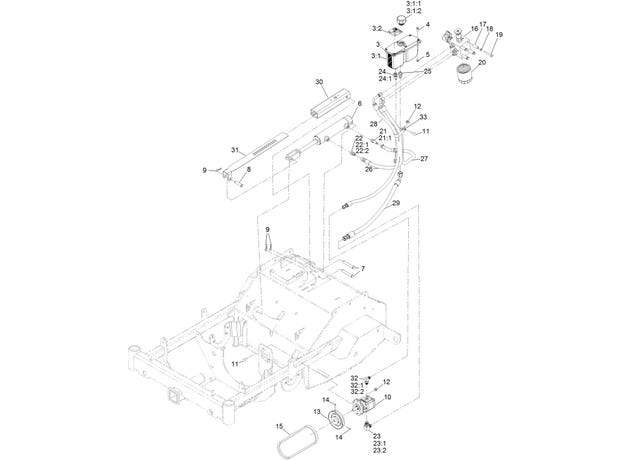

eXmark MN ZA3624 Auxiliary Hydraulic Assembly

3

116-2066

RESERVOIR ASM

$177.99

3:1:1

103-1948

CAP-RESERVOIR, HYD

$8.76

3:1:2

103-1949

GASKET-CAP

$6.71

3:2

115-4212

DECAL-WARNING

$11.99

4

32105-15

Screw-Machine 1/4-20 x 3/4

$2.98

5

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

6

126-9861

CYLINDER-HYDRAULIC

$460.99

7

283-55

PIN-CLEVIS

$12.09

8

42195

PIN-CLEVIS

$6.23

9

3290-467

PIN-HAIR

$0.97

10

126-9796

PUMP-HYDRAULIC

$506.99

11

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

12

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

13

116-6667

PULLEY

$87.99

14

3241-6

SCREW-SQH

$4.91

15

126-9803

BELT-V

$28.59

16

126-9321

MANIFOLD ASM

$685.99

17

103-0384

SPACER

$2.33

18

3253-4

Washer-Lock 5/16

$0.97

19

322-10

SCREW-HH

$1.11

20

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

21

103-1912

Adapter-Straight

$23.09

22

103-2156

Adapter-Straight

$42.89

23

103-2153

Elbow-90°

$50.59

23:1

1-603920

O-Ring-SAE #8

$3.95

23:2

1-603992

O-Ring-37 Flare #8

$2.98

24

103-1807

FITTING-BARBED, 45 DEG

$28.59

24:1

237-42

O-RING

$3.24

25

126-9952

FITTING-STR

$7.07

26

126-9468

HYDRAULIC HOSE ASM

$53.89

27

126-9469

HYDRAULIC HOSE ASM

$64.89

28

126-9470

HYDRAULIC HOSE ASM

$64.89

29

126-9471

HYDRAULIC HOSE ASM

$53.89

30

135-1224

HOUSING-DEPTH CONTROL

$36.29

31

135-1385

BRACKET-DEPTH CONTROL

$26.39

32

103-2155

Adapter-90°

$30.79

32:1

1-603921

O-Ring-SAE #6

product not available CALL FOR AVAILABILITY

$0.01

32:2

103-1020

O-Ring-37 Flare #6

$1.55

33

2412-137

CLAMP-R, DOUBLE

product not available CALL FOR AVAILABILITY

$1.00
