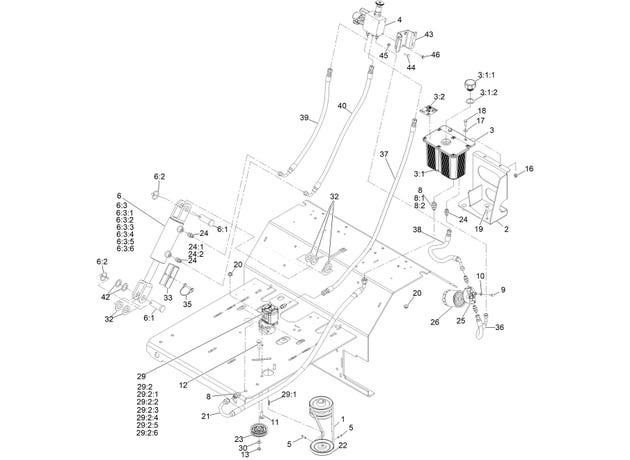

eXmark MN ZA4830 Auxiliary Hydraulic Assembly

1

116-8874

BELT-4L SECTION

product not available CALL FOR AVAILABILITY

$0.01

2

116-6618-03

BRACKET-TANK, HYDRAULIC

$117.99

3

116-7557

RESERVOIR ASM

$264.99

3:1:1

103-1948

CAP-RESERVOIR, HYD

$8.76

3:1:2

103-1949

GASKET-CAP

$6.71

3:2

115-4212

DECAL-WARNING

$11.99

4

135-5127

MANIFOLD ASM

$657.99

5

3241-6

SCREW-SQH

$4.91

6

116-6969

HYD CYLINDER ASM

$847.99

6:1

116-7290

PIN-CLEVIS

$45.09

6:2

92-1298

PIN-LYNCH

$4.07

6:3

127-3234

SEAL KIT

$104.99

8

1-603990

Adapter-Straight

$18.69

8:1

1-603920

O-Ring-SAE #8

$3.95

8:2

1-603992

O-Ring-37 Flare #8

$2.98

9

321-3

Screw-HH 1/4-20 x 5/8

$1.55

10

1-805004

Washer-Lock 1/4 Heavy

$1.55

11

3231-25

Bolt-Carriage 3/8-16 x 1 1/4

$1.46

12

3231-4

Bolt-Carriage 3/8-16 x 1 1/2

$4.31

13

3296-59

Nut-Nyloc 3/8-16 Thin

product not available CALL FOR AVAILABILITY

$0.01

16

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

17

3256-2

Washer-1/4 Std

$0.59

18

322-5

Screw-HH 5/16-18 x 1

$0.74

19

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

20

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

21

116-9309

HOSE-HYDRAULIC

$91.99

22

116-6667

PULLEY

$87.99

23

116-6760

PULLEY-IDLER, FLAT

$42.89

24

103-2156

Adapter-Straight

$42.89

24:1

1-603921

O-Ring-SAE #6

product not available CALL FOR AVAILABILITY

$0.01

24:2

103-1020

O-Ring-37 Flare #6

$1.55

25

104-7836

Filter-Head

$16.49

26

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

29

116-9129

HYDRAULIC PUMP ASM

$677.99

29:1

115-7855

KEY-SQUARE

$20.89

29:2

112-0199

SEAL KIT

$61.59

30

3256-24

Washer-3/8 SAE

$0.83

32

116-6781

SPACER

$15.39

33

116-7307-01

STOP-CYLINDER

$36.29

35

100-1663

Pin

$15.39

36

116-6675

HOSE-HYDRAULIC, LP

$34.09

37

116-8151

HOSE-HYDRAULIC

$43.99

38

116-9308

HOSE-HYDRAULIC

$37.39

39

116-6677

HOSE-HYDRAULIC

$61.59

40

135-5973

HYDRAULIC HOSE ASM

$61.59

42

3-8514

WASHER-THRUST

$3.59

43

135-3603-03

BRACKET-SENSOR, CONTROL (DEPTH)

$28.59

44

3229-30

Bolt-Carriage 1/4-20 x 1

$1.81

45

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

46

119-1065

SCREW-HWH

$2.72
