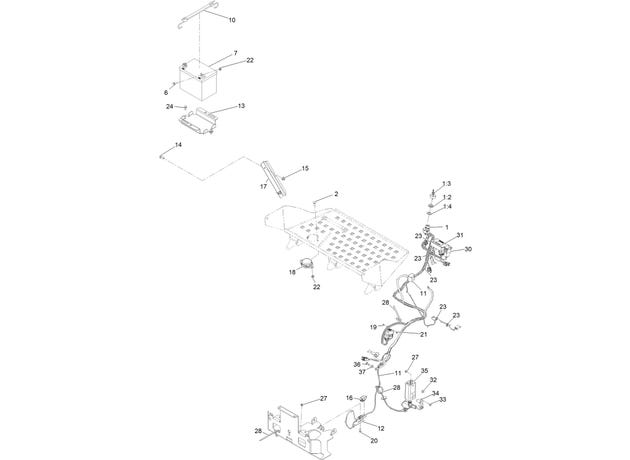

eXmark MN ZA4830 Electrical Assembly

1

126-6285

IGNITION SWITCH ASM

$56.09

1:2

108-8660

NUT-MOUNTING

$9.59

1:3

106-5270

IGNITION KEY SET

$20.89

1:4

108-8659

WASHER-BACKUP

$13.19

2

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

6

3234-5

SCREW-HHF

$1.39

7

99-7421

BATTERY- WET, 12V, 300 CCA

product not available CALL FOR AVAILABILITY

$1.00

10

104-2466

HOLDDOWN-BATTERY

$24.19

11

135-5919

HARNESS-WIRE

$459.99

12

116-7589

MOUNT-SWITCH

$41.79

13

116-9383-03

BRACKET-BATTERY

$39.59

14

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

15

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

16

110-6765

SWITCH

$14.29

17

116-9394-03

GUARD-HARNESS

$19.79

18

92-6282

SWITCH-SEAT

$35.19

19

3296-2

Nut-Nyloc #10-24

$2.46

20

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

21

3290-321

SCREW-HWH

$4.79

22

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

23

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

24

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

27

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

28

3290-378

Tie-Cable

$1.11

30

100-1535

SWITCH-ROCKER, (ON)-OFF-(ON)

$78.99

31

135-6910

HOUR METER ASM

$124.99

32

3290-320

NUT-PUSH

product not available CALL FOR AVAILABILITY

$1.00

33

32105-15

Screw-Machine 1/4-20 x 3/4

$2.98

34

135-4381

SENSOR, QUADRATURE

$196.99

35

135-6609

HOUSING-DEPTH CONTROL 30

$64.89

36

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

37

33094-00

Washer

$0.14
