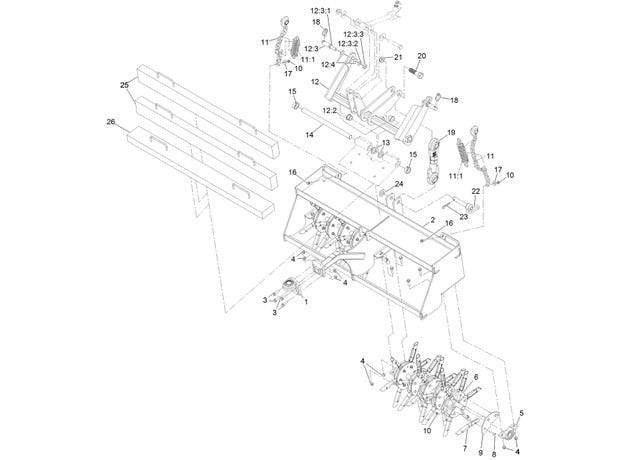

eXmark MN ZA4640 Tine Assembly

1

135-9370

MOUNT-AERATOR HEAD

$138.99

2

135-8785-05

HEAD-AERATION, 40 INCH

$805.99

3

114-4681

SCREW-HHF

$3.59

4

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

5

135-9379

BEARING-PILLOW BLOCK

$25.29

6

135-9387-05

REEL-TINE

$181.99

7

126-2143

TINE-CORING (3/4 INCH)

$12.09

8

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

9

135-9385-05

DISK, HALF, AE

$9.47

10

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

11

135-7099

SWIVEL-CHAIN ASM

$230.99

11:1

135-9373

Z-PLUG DRAWBAR SPRING

$43.99

12

135-7285

ARM-LIFT, ASM

$364.99

12:2

256-132

BUSHING-FLANGE

$5.63

12:3

135-9368

PIN-LIFT

$9.59

12:3:1

3220-6

NUT-JAM

$1.11

12:3:2

3253-8

Washer-Lock 5/8

$0.83

12:3:3

3219-6

Nut-Hex 5/8-18

$4.43

12:4

3256-27

Washer-5/8 SAE

$3.11

13

3-6781

WASHER-FLAT

$3.95

14

142-0261

PIVOT-LIFT ARM

$15.39

15

135-5382

COLLAR

$8.39

16

3234-17

Screw-HH FLG 5/16-18 x 1

$2.72

17

115-7109

WASHER-FLAT

$1.68

18

283-71

PIN-LYNCH

$6.35

19

135-9420

BALL SWIVEL, ADJUSTABLE LINK

$211.99

20

142-0611

SCREW-HH

$9.47

21

138-7087

NUT-LOCK, NI

$8.39

22

135-9421

PIN-HITCH

$15.39

23

3290-355

PIN-HAIR

$2.85

24

3256-29

Washer-7/8 SAE

$3.11

25

135-9604

WEIGHT-VERT

$347.99

26

135-6953

WEIGHT-HORIZ, ZPLUG

$372.99
