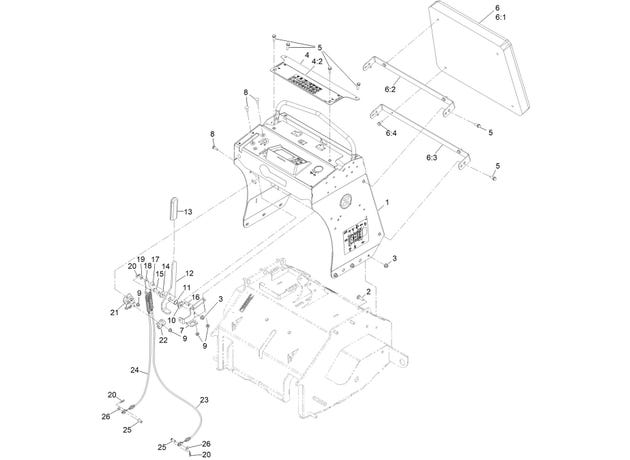

eXmark MN ZA3624 Tower Assembly

1

142-4437

CONTROL TOWER ASM

$521.99

2

119-4162

SCREW-CARR

$2.07

3

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

4

135-1695

CONTROL PANEL ASM

$75.89

4:2

135-2014

DECAL-WARNING

$13.19

5

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

6:1

135-1693

CUSHION-GREY

$228.99

6:2

135-1712-03

BRACKET-PAD, UPPER

$20.89

6:3

135-1713-03

BRACKET-PAD, LOWER

$20.89

6:4

98-9940

SCREW-HHF

$2.33

7

135-1714-03

BRACKET-PIVOT, BRAKE

$20.89

8

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

9

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

10

126-5989

PIVOT-FLANGE

$2.98

11

119-4164

WASHER-WAVE

$3.71

12

135-1715

HANDLE-BRAKE

$27.49

13

1-633268

GRIP-LEVER

$15.39

14

2844

WASHER

$3.23

15

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

16

283-61

PIN-YOKE

product not available CALL FOR AVAILABILITY

$1.00

17

114-8549

BUSHING

$3.71

18

132-1188

YOKE-CABLE

$5.75

19

93-6079

SPACER-NYLON

$2.59

20

1-806003

PIN-COTTER

$1.81

21

132-7582

MOUNT-CABLE, BRAKE

$31.89

22

132-1187

CLAMP-CABLE

$10.07

23

135-0081

CABLE-BRAKE, LH

$45.09

24

135-0082

CABLE-BRAKE, RH

$45.09

25

283-75

Pin-Clevis 5/16 X 3/4

$3.83

26

3256-23

Washer-5/16 SAE

$2.59
