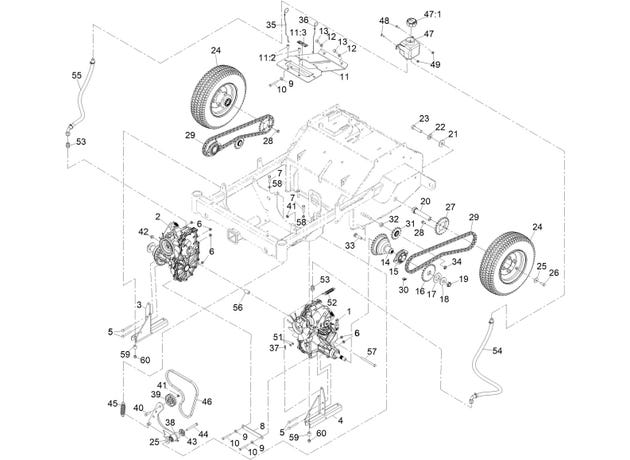

eXmark MN ZA3624 Ground Drive Assembly

1

142-6970

HYDRO-ZT3100, LH

$1,242.99

2

142-6971

HYDRO-ZT3100, RH

$1,242.99

3

135-2004-03

MOUNT-HYDRO, RH

$70.39

4

135-2006-03

MOUNT-HYDRO, LH

$70.39

5

3230-9

Bolt-Carriage 5/16-18 x 2 3/4

$4.07

6

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

7

323-52

SCREW-HH

$4.67

8

126-9092-03

CROSSMEMBER-TRANSMISSION

$7.07

9

1-303334

Washer-Spring Disc 5/16

$2.98

10

132-3838

SCREW-HH

$3.11

11

135-2497

SUPPORT-COVER

$93.99

11:2

32148-10

NUT-CLINCH

$9.59

11:3

121-6161

DECAL-DANGER

$5.75

12

3253-21

Washer-Lock 3/8

$0.29

13

323-6

Screw-HH 3/8-16 x 1

$2.98

14

135-0537

HUB-BELL

$412.99

15

135-1056

BEARING-FLANGED

$69.29

16

135-0347

SPROCKET

$65.99

17

135-0360

WASHER-SPACER

$2.98

18

26-1990

WASHER-BELLEVILLE

$19.79

19

116-2839

NUT-LOCK

$12.09

20

135-1895

AXLE-WHEEL, DRIVE

$59.39

21

135-1894

WASHER-SPACER

$8.39

22

125-1736

WASHER-BELLEVILLE

$4.67

23

327-7

SCREW-HH

$14.29

24

142-4438

WHEEL AND TIRE ASM 16X4.5-8, BLACK RIM

$131.99

25

53-6380

WASHER-FLAT

$8.27

26

3235-22

SCREW-HH, LOCK

$3.11

27

126-9075

SPROCKET

$65.99

28

98-9940

SCREW-HHF

$2.33

29

135-1100

CHAIN-ROLLER

$197.99

30

116-6897

LINK-CONNECTING

$8.51

31

126-9108

SPROCKET-IDLER, 15T

$95.99

32

126-9498

SPACER

$7.07

33

3233-4

SCREW-CARR

$3.23

34

3296-45

NUT-HEX

$4.55

35

135-0683

ROD-BYPASS, LH

$17.59

36

135-0685

ROD-BYPASS, RH

$17.59

37

3290-307

PIN-COTTER

product not available CALL FOR AVAILABILITY

$0.01

38

126-9116

IDLER ARM ASM

$148.99

39

116-9715

PULLEY-IDLER

$62.69

40

323-29

Screw-HH 3/8-16 x 1 3/8

$0.74

41

3296-59

Nut-Nyloc 3/8-16 Thin

product not available CALL FOR AVAILABILITY

$0.01

42

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

43

103-2916

Guard-Top

$2.98

44

323-20

Screw-HH 3/8-16 x 3-1/4

$3.95

45

1-603402

SPRING-EXTENSION

$8.87

46

126-9834

BELT-V, COGGED

$31.89

47

109-2250

TANK-HYD

$67.09

47:1

109-3320

CAP-RESERVOIR, HYD

$28.59

48

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

49

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

51

119-8952

WASHER-SPCL

$0.59

52

109-7124

SPRING-EXTENSION

$8.51

53

135-1900

FITTING- STRAIGHT

product not available CALL FOR AVAILABILITY

$1.00

54

135-0061

HOSE ASM

$45.09

55

135-0062

HOSE ASM

$39.59

56

135-0124

SPACER

$11.99

57

323-23

SCREW-HH

$6.11

58

106-5592

SPACER-BRAKE, PARKING

$16.49

59

98-8895

SPACER

$27.49

60

112-0236

NUT-LOCK

$6.35
