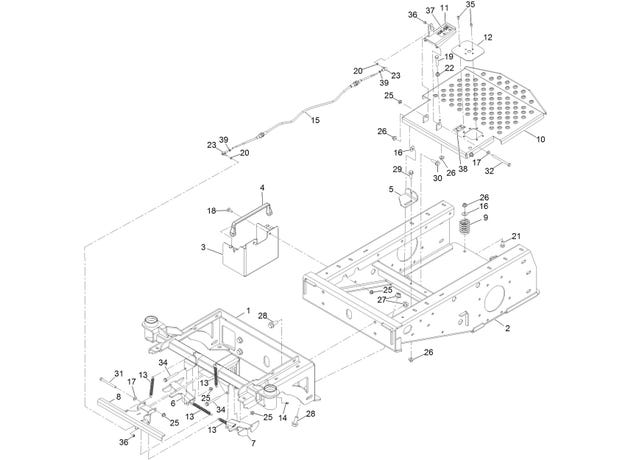

eXmark MN ZS5260 Main Frame Assembly

1

135-5179

FRAME-FRONT

$1,346.99

2

135-5171

FRAME-REAR

$1,211.99

3

142-3038

BOX-BATTERY

$88.99

4

142-1748

STRAP, TARP

$6.35

5

135-5494

BRACKET-CABLE, LOWER

$16.49

6

135-5195

WING-CAPTURE, RT

$35.19

7

135-5194

WING-CAPTURE, LT

$35.19

8

135-5369

CAPTURE-LCS

$69.29

9

135-5654

SPRING-COMPRESSION

$13.19

10

135-7502

PLATE-FOOT

$288.99

11

135-5191

PEDAL-FOOT

$30.79

12

135-5561

PANEL-SWITCH, FOOT

$9.47

13

135-5652

SPRING-EXTENSION

$4.19

14

302-63

Zerk

$3.23

15

135-5644

CABLE-CASTER, LOCKING

$87.99

16

1126

WASHER-FLAT

$1.11

17

107-0279

WASHER

$1.25

18

126-0695

SCREW-CARR

$1.55

19

126-0710

SCREW-HH

$2.07

20

126-0759

WASHER-FLAT

$1.55

21

126-0980

Screw-Carriage 3/8-16 x 1 SS

$1.94

22

135-6806

NUT-HEX FLANGE

$1.55

23

135-5682

BALL JOINT-SS

$43.99

25

135-6109

NUT-HEX FLANGE

$1.55

26

135-6110

NUT-HEX FLANGE

$1.55

27

135-6111

NUT-HEX FLANGE

$5.75

28

135-6207

SCREW-HHF

$4.31

29

135-6208

SCREW-HHF

$3.11

30

135-6211

SCREW-HHF

$4.19

31

135-6217

SCREW-HH

$1.81

32

135-6218

SCREW-HH

$2.07

34

135-6222

SCREW-HHF

$4.19

35

135-6367

SCREW-HSBH

$0.59

36

HDW05856

NUT-NYL LOCK,#10-32,ST/ST 18-8

$0.44

37

135-6430

DECAL-LOCK, CASTER

$4.19

38

135-6728

DECAL-BUTTON, FOOT (SPRAY)

$2.98

39

520-0019

NUT-HEX, JAM

$0.59
