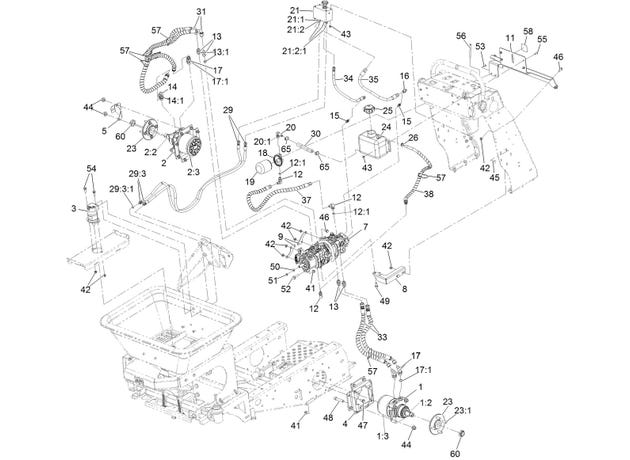

eXmark MN ZS4230 Hydraulic Assembly

#
Part #
Item
Price
Qty
Add
1
135-5230
MOTOR-WHEEL, LH
$562.99
2
135-5231
MOTOR-WHEEL, RH
$562.99
2:2
3257-42
Key-Woodruff 5/16 x 1
$6.71
2:3
103-6994
SEAL KIT
$289.99
3
135-5243
MOTOR-HYDRAULIC, SPREADER
$443.99
4
135-5524
MOUNT-MOTOR, WHEEL
$118.99
5
135-5574
BRACKET-HOPPER, SPEEDOMETER SENSOR
$4.55
7
135-5665
PUMP-TANDEM
$1,572.99
8
135-5551
BRACKET-SUPPORT, HYDRO PUMP
$24.19
9
135-5558
EXTENSION-PUMP, HYDRO
$4.31
11
135-5550
MOUNT-TANK AND FILTER, HYDRAULIC
$178.99
12
103-1802
FITTING-ELBOW, 90 DEG
$24.19
13
353-388
FITTING-STRAIGHT
$12.09
13:1
237-79
O-RING
$6.11
14
353-426
FITTING-90 DEG
$30.79
15
353-545
FITTING-STRAIGHT
$25.29
16
135-5680
FITTING-SWIVEL, 90 DEG
$4.43
17
135-5696
FITTING-ELBOW, 45 DEG
$5.15
17:1
237-80
O-RING
$6.83
18
104-7836
Filter-Head
$16.49
19
109-4180
FILTER-25 MICRON, BI-DIRECTIONAL
$50.59
20
109-6449
FITTING-ELBOW, 90
$34.09
21
142-8082
MANIFOLD-FLOW CONTROL, HOPPER
$293.99
21:1
01-201-0780
HYD FITTING 6400-4-6
$6.59
21:2
353-212
FITTING-ELBOW, 45 DEG
$25.29
23
135-7525
HUB-WHEEL
$80.99
23:1
135-7526
STUD-WHEEL
$5.75
24
135-5712
TANK-HYDRAULIC, PLASTIC
$34.09
25
135-5713
CAP-VENTED
$17.59
26
135-5757
CLAMP-OETIKER, 167
$2.07
29
142-3110
HOSE ASM-HYD HP
$64.89
29:3:1
237-42
O-RING
$3.24
30
109-5577
HOSE-HYDRAULIC
$7.07
31
142-3115
HOSE ASM-HYD HP
$89.99
33
142-3117
HOSE ASM-HYD HP
$79.19
34
142-3113
HOSE ASM-HYD HP
$50.59
35
135-5361
HOSE ASM, HYD LP
$30.79
37
135-5385
HOSE ASM, HYD LP
$53.89
38
135-5456
HOSE ASM, HYD LP
$39.59
41
135-6110
NUT-HEX FLANGE
$1.55
42
135-6109
NUT-HEX FLANGE
$1.55
43
135-6108
NUT-HEX FLANGE
$1.68
44
99-5107
Nut-Lock 1/2-13
$2.20
45
126-0695
SCREW-CARR
$1.55
46
126-2712
SCREW-HHF
$5.75
47
135-6208
SCREW-HHF
$3.11
48
3274-71
SCREW-HSH
$14.29
49
135-6274
SCREW-HHF
$2.20
50
135-6273
WASHER
$1.55
51
81-1280
SCREW-HHF
$2.07
52
135-6278
SCREW-HHF
$4.19
53
135-6280
SCREW-HHF, 1/4-20 X 1/2, SER FLG, SS
$1.55
54
135-6272
SCREW-HHF
$2.98
55
135-7080
SCREW-HSBH FLG
$2.98
56
135-6385
SCREW-HSBH
$1.68
57
3290-378
Tie-Cable
$1.11
58
135-6398
DECAL-OIL
$2.98
60
116-1399
LOCKNUT
$15.39
65
135-5692
CLAMP
$2.07
