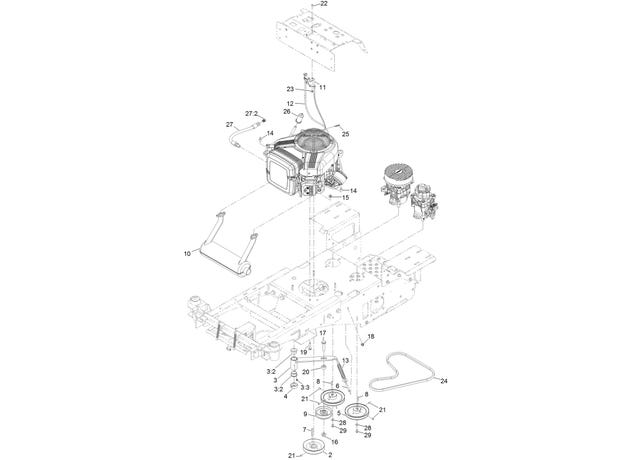

eXmark MN ZS3624 Engine Assembly

2

135-5657

PULLEY-DRIVE

$35.19

3

135-6833

ASM, ARM-TENSION

$45.09

3:2

256-132

BUSHING-FLANGE

$5.63

3:3

302-63

Zerk

$3.23

4

135-5382

COLLAR

$8.39

5

135-9068

PULLEY ASM

$71.49

6

142-0418

BOLT, EYE - 5/8 X 5/16-18 X 5

$4.31

7

103-4177

KEY

$5.75

8

1-807272

Key-5mm x 5mm x 25mm

$6.35

9

135-5662

PULLEY-IDLER, FLAT

$25.29

10

135-9245

BRIGGS 16/18 HP MUFFLER

$132.99

11

135-5260

CABLE-THROTTLE

$43.99

12

135-5707

CABLE-CHOKE

$43.99

13

135-5780

SPRING-EXTENSION

$24.19

14

135-5677

TUBE-SHRINK, HEAT

$5.75

15

135-6109

NUT-HEX FLANGE

$1.55

16

99-5107

Nut-Lock 1/2-13

$2.20

17

3234-46

SCREW-HHF

$15.39

18

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

19

142-0559

SCREW-HHF

$1.68

20

116-2959

SPACER

$7.07

21

3246-17

SETSCREW-HSH

$1.68

22

135-6374

SCREW-HSBH

$0.59

23

135-6342

NUT-HEX FLANGE

$1.94

24

135-9078

BELT-V, A48

$43.99

25

120-1996

FITTING-STR

$8.39

26

135-6687

FILTER-FUEL

$13.19

27

135-5365

OIL DRAIN HOSE ASM (W/PLUG)

$32.99

27:2

AU218-774

PLUG

$3.23

28

135-6273

WASHER

$1.55

29

81-1280

SCREW-HHF

$2.07
