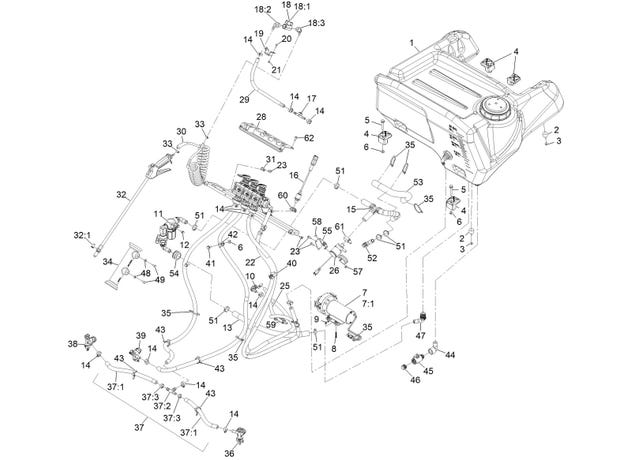

eXmark MN ZSL3620 Spray System Assembly

1

142-2730

TANK-SPRAYER

$459.99

2

1-523420

Bumper

$15.39

3

135-2880

NUT-HF

$1.68

4

107-4543

CLAMP

$11.99

5

126-2711

SCREW-HHF

$8.75

6

135-2881

NUT-HF

$1.94

7

142-2301

PUMP-DIAPHRAGM, 3.8 GPM

$442.99

7:1

135-2477

KIT-DIAPHRAM PUMP

$113.99

8

692501

SCREW-SHWH

$0.83

9

126-2645

NUT-HF

$1.94

10

126-0961

FITTING-ELBOW, BARBED

$11.99

11

126-4358

STRAINER ASM

$134.99

12

126-2713

SCREW-HHF

$5.75

13

126-4422

HOSE-WATER

$18.69

14

2412-36

CLAMP-HOSE

$2.33

15

142-2192

ASM-, 3/4 PVC REINFORCED WATER HOSE

$35.19

16

142-4495

TRANSDUCER-PRESSURE

$309.99

17

126-2348

FITTING-TEE

$17.59

18:1

126-0242

VALVE-BALL

$42.89

18:2

126-4992

FITTING-ELBOW-90

product not available CALL FOR AVAILABILITY

$0.01

18:3

126-4993

FITTING-ELBOW-90

$5.75

19

126-0239-03

BRACKET-VALVE

$18.69

20

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

21

3296-2

Nut-Nyloc #10-24

$2.46

23

32144-10

Screw-HWH 1/4-20 x .62

$5.15

25

142-2213

HOSE-WATER

$3.83

26

135-7843

PUMP-CENTRIFUGAL

$151.99

28

142-7735

COVER-CONTROLS

$47.29

29

126-5847

HOSE-WATER, 3/8 PVC RED

$8.51

30

142-5821

HOSE-COILED, 04X15FT

$34.09

31

2412-89

CLAMP-R

$2.98

32

126-8000

SPRAY WAND ASM

$123.99

32:1

126-3943

STRAINER-NOZZLE, 50M 5PSI CHECK

$19.79

33

126-2707

CLAMP

$1.55

34

126-3987

HOLDER-WAND

$73.69

35

3290-378

Tie-Cable

$1.11

36

126-3667

LEFT NOZZLE SUB ASM

$75.99

37

126-2252

HOSE ASM

$26.39

37:1

126-2264

HOSE-WATER

$9.59

37:2

126-0968

FITTING-TEE

$5.75

37:3

142-3662

CLAMP OETIKER 0.716" CLOSED 0.826" OPEN

$1.55

38

126-3669

RIGHT NOZZLE SUB ASM

$75.99

39

126-3668

CENTER NOZZLE SUB ASM

$75.99

40

120-1959

CLAMP

$3.83

41

126-2712

SCREW-HHF

$5.75

42

1-633396

Clip-Loom 5/8

$5.75

43

105-1853

CLAMP-HOSE

$5.75

44

108-3573

ELBOW-90 DEG

$15.39

45

126-1494

MICROVALVE

$46.19

46

363-3125

PLUG-HDPE BLACK

$3.24

47

119-0490

ELBOW-HOSEBARB

$5.15

48

360-0140

WASHER-FLAT

$0.83

49

126-1290

SCREW-HH

$1.55

51

126-4779

CLAMP

$2.98

52

126-4420

FITTING-ELBOW

$16.49

53

126-5065

SLEEVE-CORRUGATED, SPLIT

$15.39

54

126-7410

GROMMET

$7.07

55

135-7913-03

BRKT-RECIR PUMP

$11.99

57

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

58

3229-11

Bolt-Carriage 1/4-20 x 5/8

$1.39

59

142-2180

VALVE-3/8 CHECK

$67.09

60

132-7590

R-CLAMP

$3.71

61

2412-129

CLAMP-HOSE

$5.75

62

120-7950

Screw-1/4-20 x 1/2 TF Torx Plus

$2.98
