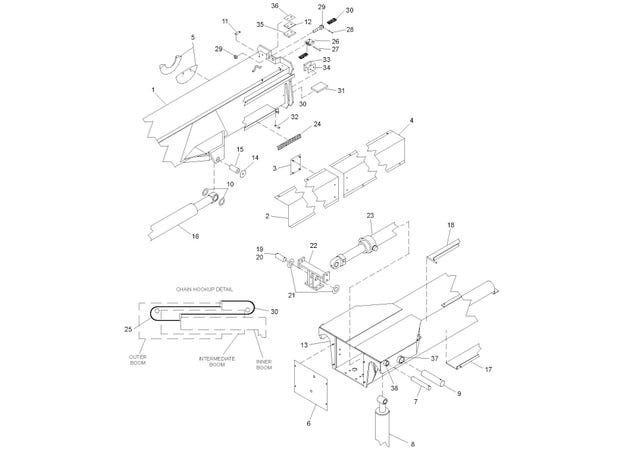

GEHL 883 Telescopic Handlers Parts Outer Boom Group

#
Part #
Item
Price
Qty
Add
1
L64350
(T) Wldmt/Outer Boom

product not available CALL FOR AVAILABILITY

$13,266.44
2
L64951
Cover/Rear Hosetray
$109.44
3
L64992
Plate/Hose Tray Cvr.
$22.20
4
L64949
(T) Cover/Front Hosetray
$84.96
5
50292203
Kit/Angle Indicator
$272.31
6
L64737
Cover/Rear Outer Bm.
$42.94
9
L64060
Pin/Boom To Upright
$105.24
10
L64591
Spacer/Butt End
$16.48
13
L64080
Plate/Outer Boom Rear

product not available CALL FOR AVAILABILITY

$87.69
14
L64590
Washer/Pin Retainer
$2.43
15
L64621
Pin/Rod End Lift Cyl
$37.52
16ab
L66821
(T) Cyl/Lift
$7,103.38
17
L64580
(T) Mount/Hose Track
$135.82
18
L64585
Guide/Hose Tray
$86.68
19
L50608
CP EPSC 3/16x4 Z
$0.44
20
L64550
Pin/Ext Cyl 2.00" Lg
$85.21
21
L400207
Washer/Axl Pin (Thn)
$12.76
22
L64442
Wldmt/Ext Cyl Mnt Outer
$285.38
26
L64384
Block/Top Front Clevis
$40.37
27
L64468
Pin/Chain Rear Uppr Innr
$5.57
28
L64466
Pin/Chain Adj Clevis
$5.67
29
L64359
*Clevis/Chain Adjmnt (R/B 50346520)
$74.41
30
L64364
Chain/Boom Leaf
$453.58
31
L61708
Pad/Slide 4" X 6"
$55.34
32
L62715
Lock/Bolt Flat
$1.20
34
L62734
Shim/1/8" X 3" X 4"
$3.37
35
L61709
Pad/Slide 3" X 4"
$28.99
36
L64132
Shim/3/8" X 3" X 4"
$7.27
37
L64061
Collar/2.5" Lock
$11.63
38
L61942
Collar/1.25" Lock

product not available CALL FOR AVAILABILITY

$21.67
38
L62026
Collar/1.50" Lock
$9.85

L66032
Cyl/Slave Aurel
$3,074.09

L66666
Cyl/Slave 8&10 Rosenb
$2,069.57

650744
Screw/Hc 1/2 x 4
$0.93

L64087
Cyl/Slave Aurel
$1,180.35

067847
Nut/Nylon Insert Lock
$1.78

650493
Screw/Hc 3/8 x 2-3/4
$1.30

L66034
Pin/Slave Cyl Rod End
$69.27

L64113
Pin/Slave Cyl Rod End
$52.65

210-19470
Nut Whizlock W/F 5/16-18nc Plt
$1.23

654004
FW 5/16
$1.23

L65640
Plate/Angle Indicatr
$26.25

L50491
RHMS SLT #832x5/8 CZY
$0.09

L65638
Indicator/Boom Angle
$213.51

090666
Nut/Hex Flange Whiz Lock
$1.67

654006
FW 3/8
$1.20

068034
HLN INST 1/2 C2ZY
$1.78

L50312
BOLT/.63-11X1 NY
$2.99

L64644
Extension/Tray Guide

product not available CALL FOR AVAILABILITY

$45.94

L99134
Sleeve/Hose 2.07" x 16'
$101.02

L99135
Sleeve/Hose 1.75" x 16'
$82.88

650710
Screw/Hc 5/8 x 2-1/4

product not available CALL FOR AVAILABILITY

$2.35

067823
Nut/Lock
$0.77

L66770
(T) Cyl/Ext 8&10 Rosenb
$5,155.66

50292252
Kit/Tilt Track
$532.65

50292204
Kit/Tilt and Aux Track
$517.94

L50206
Clamp/Vinyl .88 Dbl
$1.91

650484
Screw/Hc 5/16 x 1/2
$0.77

064260
Nut/Nylon Insert Lock
$1.78

L50380
CS 1/2x1-1/4 F8ZY
$1.31

654030
Lockwasher 1/2
$1.23

650488
Screw/Hc 3/8 x 3/4
$1.24

L50092
HN 1 C5ZY
$1.63

650489
Screw/Hc 3/8 x 7/8
$1.24

650491
Screw/Hc
$1.18

N/A
BATTERY *

product not available CALL FOR AVAILABILITY

$0.00
