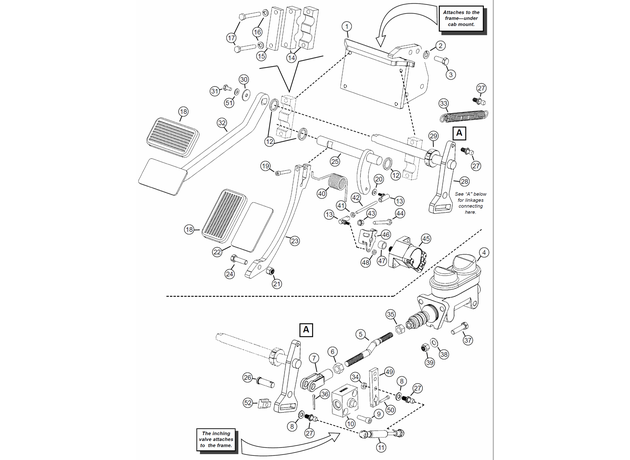

GEHL RS5-19 Telescopic Handler Parts - SN 51801 and up CAB-Pedals-Brake and Accelerator

#
Part #
Item
Price
Qty
Add
1
210646
Weld/Brake Throttle Mount
$111.94
2
654026
Lockwasher 3/8
$1.22
3
650490
Screw/Hc 3/8 x 1
$1.24
4
L63363
Valve/Master Cyl Brk
$278.88
5
210001
Linkage/Brake
$0.85
6
653018
HN 1/2 C2ZY
$1.83
7
L580005
Yoke/Clevis 1/2-13
$22.81
8
650810
Washer/Plain Narrw .312 T
$0.76
9
651517
Cap Screw
$3.94
10
103838
Inching Valve
$326.96
11
50380513
Spring/Gas
$20.54
12
103835
Nylon Spacer
$0.50
13
L580009
Ball Jnt/10-32 Rod End
$7.77
14
104028
Cushion Block/Brake
$20.66
15
L63719
Plate/Twin-Wide Top
$6.13
17
650725
Screw/Hc 5/16 x 2-1/4
$0.20
18
L69789
Pad/Rubber
$12.04
19
651798
Cap Screw

product not available CALL FOR AVAILABILITY

$1.71
20
650863
Washer/Plain Narrw .250 T
$1.23
21
067847
Nut/Nylon Insert Lock
$1.78
22
L69615
Weld/Throttle Pedal

product not available CALL FOR AVAILABILITY

$29.89
23
210645
Plate/Throttle Pedal Arm
$80.04
24
650491
Screw/Hc
$1.18
25
210640
Weld/Throttle Lever
$67.72
26
L44859
Pin/Clevis 1/2x27/64
$0.84
27
L69488
Stud/Ball
$2.27
28
50380519
Weld/Brake Lever
$126.02
29
103834
Shaft Collar
$24.80
30
L500022
Washer/Flat Black
$2.83
31
650542
Screw/Hc 1/4 x 1/2 G5
$0.77
32
50307908
Arm/Brake w/Set Screw

product not available CALL FOR AVAILABILITY

$69.71
33
L561004
Spring/Ext 13ga.73x6
$5.70
34
653034
Nut/Hex Jam 5/16
$0.77
35
L446043
HJN 7/16 F2ZY

product not available CALL FOR AVAILABILITY

$1.79
36
655006
Pin/Cotter 1/8 x 1"
$1.23
37
650533
Screw/Hc 3/8 x 1-1/2 C5ZY
$1.25
38
654006
FW 3/8
$1.20
40
210708
*Spring/Torsion (R/B 50338947)
$21.07
41
650648
Nut/Hex #10-32
$1.23
42
211112
Rod/ #10-32 threaded x 3.25"
$2.49
43
071401
Nut/Nylon Insert Lock
$1.78
44
650706
Screw/Hc 1/4 x 2
$0.21
45
50353984
Throttle Body
$146.42
45
650448
Screw/Hc 1/4 x 3/4 C5ZY
$0.77
46
50322227
Kit/Throttle Arm
$23.62
47
211110
Spacer ring
$3.45
48
121002
Nut/Nylon Insert Lock
$0.78
49
NSS
RACKET/CONDENSOR SUPPORT

product not available CALL FOR AVAILABILITY

$0.00
50
651505
Cap Screw

product not available CALL FOR AVAILABILITY

$3.65
51
654002
FW 1/4
$1.23
52
50380515
Nut/T-Slot
$13.34
