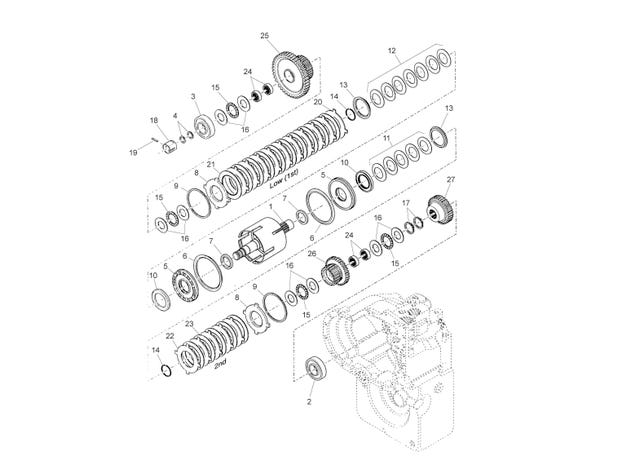

GEHL RS6-34 Telescopic Handler Parts Transmission First and Second Shaft Group

#
Part #
Item
Price
Qty
Add
1
L500415
Shaft & Drum Asy/1st & 2nd

product not available CALL FOR AVAILABILITY

$1,685.79
2
L98275
Bearing/Rear
$149.08
3
L500273
Bearing & Seal Asy
$87.89
4
L98250
Ring/Piston
$34.09
5
L99038
Piston/Clutch & Seals
$131.49
6
L98246
Seal/Outer Piston
$32.76
7
L98247
Seal/Inner Piston
$22.32
8
L98238
Plate/End
$100.84
9
L98237
Ring/Snap
$10.32
10
L98244
Plate/Wear
$16.67
11
L98961
Asy/Disc Sprg Pkg 5
$62.81
12
L500416
Disc Spring 1st
$70.23
13
L98242
Retainer
$10.50
14
L98241
Retainer/Snap Ring
$3.64
15
L98236
Bearing
$3.56
16
L98235
Washer/Thrust
$14.49
17
L98260
Ring/Snap
$3.23
18
L98272
Sleeve/Oil Distrib
$123.18
19
L98257
Screw/Sleeve Loc
$6.45
22
L98240
Clutch/Outer Fwd
$17.92
23
L98239
Clutch/Inner Fwd
$26.33
24
L98253
Bearing/Clutch Gear
$17.47
25
L98968
1st Clutch Gear/Brg Assy
$236.76
26
L98276
2nd Clutch Gear/Brg Assy
$809.30
27
L98277
Gear/3rd Driven

product not available CALL FOR AVAILABILITY

$444.34
