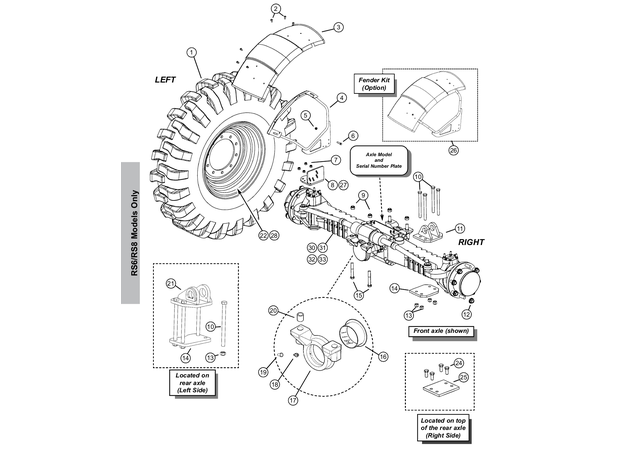

Axles-Mounts, Tires, and Fenders-(RS6 RS8 Models Only)

#
Part #
Item
Price
Qty
Add
01
NSS
RACKET/CONDENSOR SUPPORT

product not available Pending on the Vendor - available in 7-10 business days

$0.00
02
651739
Button Head Socket Cap Screw
$0.77
03
L99951
Fender/Dl-Series
$155.12
04
105202
Weld/LF-RR Fender Mount
$310.53
05
090666
Nut/Hex Flange Whiz Lock
$1.67
06
650579
Screw/Hc 3/8 x 1-3/4
$1.84
07
50221011
Nut
$9.30
08
102569
Mount/ fender LF/ RR
$54.79
09
L50201
LN INST M20-2.50 C8 ZY DIN985
$4.62
10
L50712
CS 3/4x9 C8ZY
$8.42
11
210558
Weld/ level cyl mount RS6/8

product not available Pending on the Vendor - available in 7-10 business days

$246.67
12
L69734
Nut/Wheel,M22x1.5
$7.80
13
L50084
HLN TOP 3/4 CCZY
$10.19
14
210572
Plate/ level mount bottom
$31.50
15
651543
CS M20-2.5x130 C10.9 ZY DIN931
$9.53
16
L500543
Bushing/Thrust
$201.15
17
L500544
Support
$346.17
18
L98355
Bolt/Fitting,Hurth Axle
$3.45
19
L500496
Plug
$8.53
20
L500542
Bushing/Reduction
$32.73
21
210168
Weldment/Stab Cyl Mount
$225.46
22
L69114
(T) Wheel/24 x 9
$925.96
24
656035
M16-20x20 8.8 BOLT

product not available Pending on the Vendor - available in 7-10 business days

$0.00
25
210167
Plate/212HY Right Stop

product not available Pending on the Vendor - available in 7-10 business days

$12.47
26
820530
FENDER KIT (option)

product not available Pending on the Vendor - available in 7-10 business days

$0.00
27
102570
Mount/ fender RF/LR
$57.91
28
L63222
Stem/Valve .625 Hole
$7.25
30
102122
(T) Axle 212HY w/int park brake
$14,213.54
31
210751
(T) Axle/ Re-man 212HY front (102122)

product not available Pending on the Vendor - available in 7-10 business days

$11,426.85
32
102123
(T) Axle 212HY rear
$14,147.75
33
105268
Axle/ reman 212HY (102123) - REAR

product not available Pending on the Vendor - available in 7-10 business days

$10,383.66
