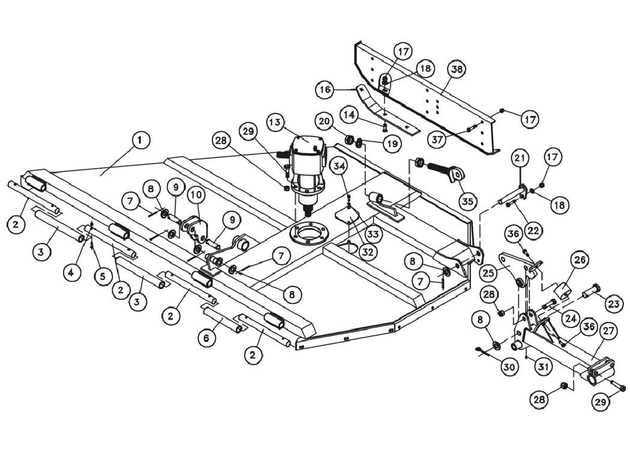

Wing Frame Right

1

C314-155

WING ASSEMBLY, RIGHT

$0.00

2

752-014

HINGE PIN, 15" O.A.

$0.00

3

C310-140

HINGE SPACER TUBE, 13-7/8" O.A.

$0.00

4

270-020

LOCKNUT. 5/16 UNC

$0.00

5

250-012

BOLT, 5/16 X 1-3/4 UNC

$0.00

6

C310-141

HINGE SPACER TUBE, 10-3/8" O.A.

$0.00

7

262-006

ROLL PIN, 3/8 X 2

$0.00

8

256-001

FLAT WASHER, 1 X 2

$0.00

9

C301-140

PIN, 1 X 3-13/32" O.A.

$0.00

10

C301-114

FLOATING LUG

$0.00

13

330-7030

GEARBOX, CW (FIXED KNIFE, MATERIAL DISTRIBUTION, AND SOD KIT)

$0.00

13

330-7031

GEARBOX, CCW (REGULAR PAN KIT)

$0.00

14

250-201

PLOW BOLT, 1/2 X 1-1/2 UNC

$0.00

16

C310-135

OUTER WING SKID, STANDARD

$0.00

17

270-007

Lock nut, 1/2 UNC

$0.00

18

256-011

FLAT WASHER, 1/2

$0.00

19

255-020

LOCK WASHER, 1-1/4"

$0.00

20

257-054

HALF NUT, 1-1/4" UNC

$0.00

21

C310-145

RETAINER PIN, 1 X 6-15/16 U.L.

$0.00

22

250-059

BOLT, 1/2 X 1-1/2 UNC

$0.00

23

302-015

CLEVIS PIN, 1 X 2-7/8 UL

$0.00

24

250-111

BOLT, 3/4 X 4 UNC

$0.00

25

C310-124

WHEEL STANDARD SUSPENSION PLATE

$0.00

26

233-050

RUBBER SANDWICH

$0.00

27

C310-123

WING WHEEL STANDARD ASSEMBLY

$0.00

28

270-001

LOCK NUT, 3/4 UNC

$0.00

29

250-112

BOLT, 3/4 X 3 UNC

$0.00

30

271-005

COTTER PIN, 3/16 X 1-1/2

$0.00

31

273-006

GREASE NIPPLE, SELF TAP

$0.00

32

C310-115

BOLT ACCESS COVER PLATE

$0.00

33

255-013

LOCK WASHER, 3/8

$0.00

34

250-018

Bolt, 3/8 x 1 UNC

$0.00

35

C320-132

WING ADJUSTMENT ASSEMBLY

$0.00

36

250-055

BOLT, 1/2 X 3/4 UNF

$0.00

37

250-061

Bolt, 1/2 x 1-1/4 UNC

$0.00

38

C312-157

ADJUSTABLE SIDE MOUNT, RIGHT

$0.00
