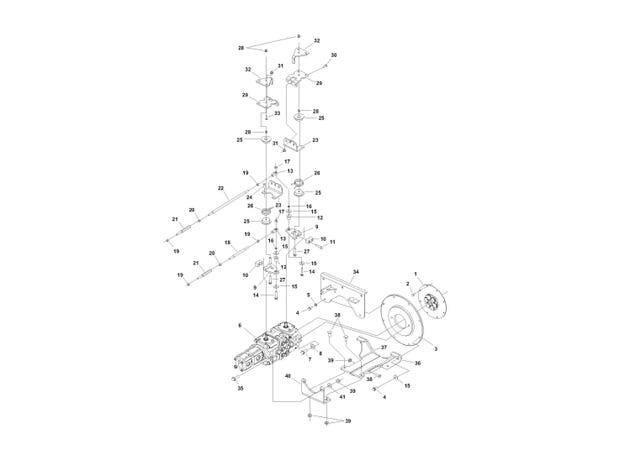

GEHL SL3635 & SL3935 Skid Steer Loaders Parts/li> HYDROSTATIC MOUNT AND LINKAGE

#
Part #
Item
Price
Qty
Add
1
250-32602
Flexible Drive Plate
$136.84
2
651430
CS M8-1.25 x 12
$2.03
3
160-32740
Plate, Pump Mount
$236.13
4
310-32641
SCREW/CAP M10X35MM

product not available CALL FOR AVAILABILITY

$1.50
5
654028
Washer/Hsp Lck Reg .438 F
$0.44
6
243296
Pump/Assembly
$2,573.04
7
310-32653
CS FL 1/2x1-1/2 C8ZY
$1.43
8
654009
FW 1/2
$1.21
9
240-32117
PUMP ARM WELDMENT
$53.91
10
200-32691
Retainer, Pump Arm
$10.39
11
650978
CS 3/8 x 1-3/4
$0.63
12
072384
Mount/Rubber
$3.60
13
079039
Rod/End Female Thrd RT
$10.23
14
650528
Screw/Hc 3/8 x 2
$0.77
15
400-20715
Washer, 1 1/4 X 13/32
$0.93
16
400-13676
Washer
$1.68
17
071703
Nut/Hex Lock 3/8
$1.81
18
290-32582
Rod, Control L.H.
$16.39
19
650552
Nut/Hex 3/8
$0.78
20
070068
HN 3/8 F2ZY LH
$0.65
21
200-32668
Turnbuckle
$16.19
22
290-32581
Rod, Control R.H.
$12.60
23
040-33757
Brkt/Neutral Centering
$15.07
24
650487
Screw/Hc 5/16 x 1
$0.76
25
045-31499
Hub, Neutral Spring Mount
$9.19
26
380-32424
Spring, Torsion 4 Coils
$7.33
27
310-29166
CS FL LOCK 3/8x1-3/4 C5ZY
$0.95
28
070856
Nut/Hex Lock
$1.78
29
040-33756
Mount/Neutral Spring
$17.60
31
210-31017
LN FL CTR 5/16 CFZY
$1.26
32
040-33758
Plate/Neutral Adjust
$7.32
33
650573
CB 5/16 x 1 C5ZY
$0.23
34
120-32985
Engine Mount Weldment
$94.57
35
310-26839
CS FL LOCK 1/2x1-3/4 C5ZY
$3.83
36
120-32997
* Hydro Sprt Wldmt LH (SEE NOTE)

product not available CALL FOR AVAILABILITY

$0.00
37
120-32996
* Hydro Sprt Wldmt RH (OBS) (SEE NOTE)

product not available CALL FOR AVAILABILITY

$0.00
38
030-31934
CB 1/2 x 1-1/2 C8ZY
$2.01
39
081374
Locknut/Hex 1/2
$0.77
40
090-32540
* Bracket, Hydro Support (SEE NOTE)

product not available CALL FOR AVAILABILITY

$0.00
41
073776
Washer
$4.15

380-32425
Spring, Torsion 3 Coils
$8.55

200-32617
Turnbuckle R.H.
$12.36
