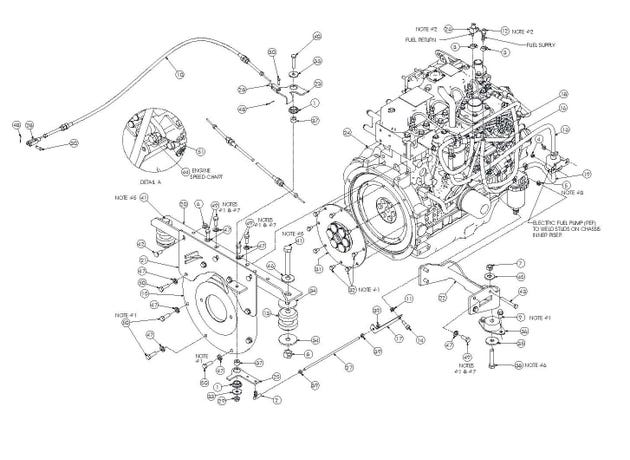

GEHL SL3640E/SL3840/SL4240E Skid Steer Loaders Parts ENGINE AND CONTROLS 4240: SN 005400 and Before

#
Part #
Item
Price
Qty
Add
1
045-31488
Bushing, Oilite Flanged
$3.51
2
054885
Ball/Joint
$10.44
3
062023
Clamp/Hose #04M
$0.76
4
071700
LN 1/4-20 CBZY
$1.78
5
071701
Nut/Hex Lock
$0.77
6
071703
Nut/Hex Lock 3/8
$1.81
7
071706
LN 1/2 CBZY
$1.78
8
071709
Nut/Hex Lock
$1.74
9
076588
Screw/Hex Flange Whiz Loc
$1.78
10
090-32042
Cable, Throttle
$68.39
11
131842
Nut/Spiralock 5/16-18
$0.77
12
133074
Fitting/Pipe
$21.98
13
137063
Isolator/2203-1
$27.94
14
137204
Screw/Shoulder 3/8x1/2
$3.60
15
160-32740
Plate, Pump Mount
$250.30
16
184296
Hose/Fuel
$4.63
17
184436
Bracket/Throttle Suppport
$5.57
18
184735
Hose/Fuel
$205.13
19
50352010
Fuel Hose 5/16 x 12"
$8.47
20
187714
Brace/Engine Top
$30.82
21
187919
Weldment, Engine Mount
$31.97
22
186817
Weldment Engine Mount Bracket

product not available CALL FOR AVAILABILITY

$101.50
23
189386
Pivot/Throttle Hand
$16.34
24
189177
Yanmar/3TNV88-XMS2 Engine (3/4 Engine)

product not available CALL FOR AVAILABILITY

$6,088.10
25
189449
Pivot/Throttle Foot
$499.10
26
189709
Valve/Fuel Shut Off
$17.36
27
186889
Rod, Throttle
$4.05
28
200-32287
Yoke
$12.80
29
210-19533
Nut Ctrlock Nar/F 3/8-16nc Pt
$0.77
30
220-16148
Pin, Clevis 1/4 X 3/4
$1.02
31
250-32602
Flexible Drive Plate
$145.05
32
651430
CS M8-1.25 x 12
$2.03
33
400-20715
Washer, 1 1/4 X 13/32
$0.93
34
400-21568
Washer (Plated)
$3.36
35
400-30803
Washer, Flat Cad. Plated
$0.96
36
420-35299
Engine Mount
$34.32
37
480-32362
Bushing
$4.65
38
650503
Screw/Hc 1/2 x 2-1/2
$1.08
39
650546
Nut/Hex 1/4
$0.78
40
650579
Screw/Hc 3/8 x 1-3/4
$1.86
41
650631
Screw/Hc 5/8 x 4 Gr5
$2.66
42
650704
Bolt/Rhsqn 3/8 x 1.0
$0.77
43
650784
Screw/Hc 5/16 x 2-3/4
$0.44
44
651662
CS M6-1.00x40 C8.8 ZY DIN931

product not available CALL FOR AVAILABILITY

$1.71
45
654009
FW 1/2
$1.78
46
654012
FW 5/8
$0.76
47
654028
Washer/Hsp Lck Reg .438 F
$0.78
48
655001
Pin/Cotter 1/16 x 3/4
$1.81
49
656007
CS M10-1.5 x 25
$111.38
50
656008
CS M10-1.5 x 30
$0.59
51
656047
HN M6-1
$1,270.24

270979
Filter/Fuel
$18.79

188636
Generator
$747.45

188730
V-BELT
$7.76

190852
V-Belt 39"
$19.62

137500
Filter/Engine Oil
$15.62

189391
Yanmar/4TNV88-XMS2 3/4 Engine

product not available CALL FOR AVAILABILITY

$8,442.05

242164
Engine Mount/Wldmnt
$51.37

188586
Starter
$582.47

425-35508
Starter 2.5 Kw
$598.83

189962
Rod/Throttle
$8.31
