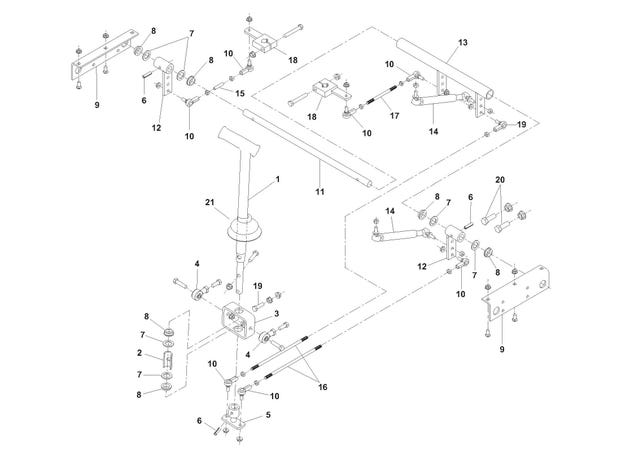

GEHL SL4635 & SL4835 Skid Steer Loaders Parts SL46/4835 SKID LOADERS - CONTROLS - TRACTION T-Bar Model

#
Part #
Item
Price
Qty
Add
1
134888
Steering Arm, L.H.
$132.17
2
134327
T-Bar Stop
$3.92
3
135393
Pivot
$23.18
4
134792
Rod End 3/8 Isolated
$24.62
5
134532
Pivot Assembly

product not available CALL FOR AVAILABILITY

$23.67
6
075288
Pin/Roll
$0.77
7
056937
Washer
$1.78
8
128316
Bearing, Bronze
$1.40
9
134400
Bar/Brg Pivot
$23.69
10
079216
Rod/End Female With Stud
$10.56
11
127669
Shaft/Pivot
$36.51
12
134658
Lever Assy
$7.66
13
134659
Tube/Pivot Assy
$49.26
14
134757
Centering Device
$83.66
15
123722
Stud/Control Rod
$1.92
16
134436
Rod/9.25
$3.96
17
134437
Rod/4.75
$3.51
18
189508
Control Arm
$25.41
19
650491
Screw/Hc
$1.18
20
650453
Screw/Hc 1/2 x 1-1/2
$0.90
21
074093
Boot/Control Lever
$6.53

653036
Nut/Hex Jam 5/16
$3,169.18

654002
FW 1/4
$1.23

656048
HN M8-1.25
$71.19

134851
Nut/Spiralock
$0.28

134853
Nut/Spiralock
$2.02

131842
Nut/Spiralock 5/16-18
$0.77

650687
Bolt/Rhsqn 5/16 x 3/4
$0.77

650634
Cs 3/8x1 F5zy
$0.77

134852
Nut/Spiralock
$0.77

650533
Screw/Hc 3/8 x 1-1/2 C5ZY
$1.25

650492
Screw/Hc 3/8 x 2-1/2
$1.29
