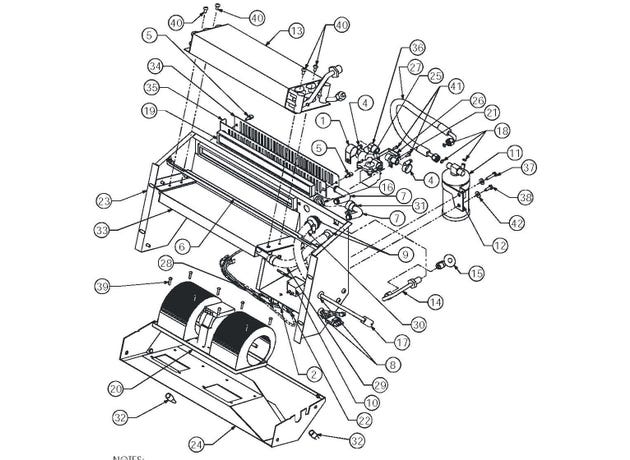

GEHL SL4640E, SN 310601 & Up, SL5240E Skid Steer Loaders Parts KITS AND ACCESSORIES 811386 HVAC Kit 241536 AC Main Housing Assembly

#
Part #
Item
Price
Qty
Add
1
058805
Clamp/Cooler
$1.78
2
242145
Relay/Sealed
$5.41
3
084175
Nut/Hex Nylon Insert Lock
$0.77
4
095955
Clamp/Hose #10
$1.80
5
136314
Thumbscrew
$120.54
6
138548
Brkt/Reinforcment
$65.15
7
138554
Elbow/90degree/5/8 Tube
$13.23
8
420-36134
Grommet .38 ID
$0.29
9
138563
Grommet
$2.75
10
138623
Switch/Preset Cold Control
$53.85
11
138649
Receiver/Dryer/AC
$115.14
12
138651
Clamp/Receiver Dryer
$11.42
13
138678
Core/Evaporator AC
$331.20
14
138720
Pipe/Bulkhead AC Fitting
$35.31
15
138723
Expansion Valve/AC
$73.32
16
138728
Jam Nut
$14.72
17
138768
Wire Harness/AC Cold Switch

product not available CALL FOR AVAILABILITY

$17.93
18
138777
O-Ring/AC/#6 Fitting
$1.81
19
184708
Filter/Fresh Air
$44.16
20
186151
Double Blower XX40
$366.10
21
186193
ST 1/2MPT x 5/8 Hose
$8.31
22
186203
Elect. Harness Htr Relay
$8.55
23
186269
Housing/ AC
$8.06
24
186270
Drip Pan/ AC
$253.64
25
186703
Htr/ AC Solenoid Valve
$204.40
26
186716
Valve Clamp
$41.57
27
186838
Hose/ #6/ AC/ Dryer
$51.00
28
186936
Rectifier Pack W/ Leads
$47.98
29
186944
Hose Heater/ Internal 10"
$20.33
30
186946
Hose Heater/ Internal 18"
$28.79
31
186996
Hose Heater/ External

product not available CALL FOR AVAILABILITY

$21.12
32
187030
Drip Cap
$2.28
33
189129
Core/Heater
$174.15
34
189165
Grille/Filter Outer
$15.67
35
189168
Grille/Filter Inner
$24.77
36
241528
45 1/2MPT X 5/8 Hose
$8.58
37
650426
Screw/Hc 1/4 x 1-1/4 Gr
$0.77
38
650448
Screw/Hc 1/4 x 3/4 C5ZY
$0.77
39
650815
Screw/Rhm #10-24 x 3/4
$0.77
41
651312
Thms 10-24 X 1/2
$1.25
42
654002
FW 1/4
$1.23
NS
241536
AC Main Housing Assy

product not available CALL FOR AVAILABILITY

$2,722.83

N/A
BATTERY *

product not available CALL FOR AVAILABILITY

$0.00
