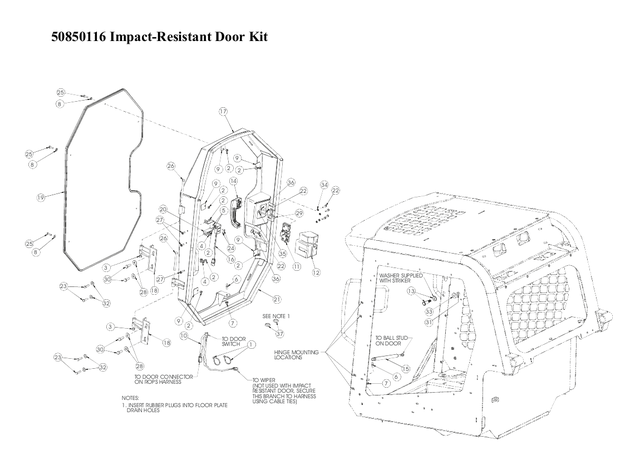

GEHL V270-v330 Skid Steer Loaders Parts  - V270: SN 023001 and up - V330: SN 133001 and up KITS AND ACCESSORIES-50850116 Impact-Resistant Door Kit

#
Part #
Item
Price
Qty
Add
1
055648
Tie/Wire Black 7.5"
$0.77
2
071401
Nut/Nylon Insert Lock
$1.78
3
071703
Nut/Hex Lock 3/8
$1.81
4
076078
Clamp
$1.78
5
084174
HLN Nylon Insert #12-24 CZY

product not available CALL FOR AVAILABILITY

$0.99
6
122485
Stud/Ball
$1.77
7
131842
Nut/Spiralock 5/16-18
$0.77
8
137462
Washer 1/4 Sealing
$0.77
9
187405
Tab/ Lexan Door
$2.14
10
242866
Harness/Door V2700V
$41.88
11
242927
Latch/Door
$78.62
12
242928
Cover/Latch
$83.77
13
242930
Striker
$50.27
14
50304908
Handle Assy
$61.55
15
242942
Spring/Gas
$74.67
16
244668
Proximity Switch
$96.06
17
245260
Wldmt/Frame, Door
$385.86
18
50350139
Wldmt/Hinge, Cabside
$49.47
19
50350159
Panel/Impact
$603.73
20
50350300
Bracket/Sensor, Proximity
$25.87
21
50350313
Seal/Bulb
$23.18
22
50657011
Pan Head Machine Screw
$0.18
23
650545
CS 5/16 x 1-1/4 C5ZY
$0.77
24
650812
Screw/RHM Sltd #12 x 1/2

product not available CALL FOR AVAILABILITY

$0.99
25
650835
Screw/Hc .25-20 x 1.0 C5ZY
$0.09
26
650851
Screw/Hc 3/8 x 4-1/2
$1.40
27
651308
Phil Pan S 1/4-20 X 3/4
$1.26
28
651659
FW M10.5x20x2.0 ZB Hardened DIN125
$2.10
29
651752
CS M6-1.00x100 C8.8 ZY DIN931
$0.57
30
651821
CS M10-1.5 x 30
$0.84
31
653015
Nut/Hex 7/16
$0.18
32
654004
FW 5/16
$1.23
33
654046
FW 7/16 WZY
$1.16
34
654052
LW INT T 1/4 AZY
$0.10
35
656047
HN M6-1
$1,245.33
36
656179
FW M6 ZY DIN125
$0.05
37
192182
Plug/Rubber
$476.77

50280186
Key
$3.49

50850116
IMPACT / DOOR
$733.22
