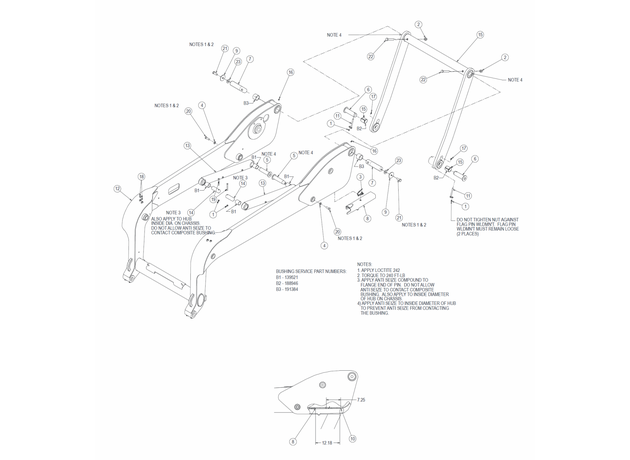

GEHL V400 Vertical Lift Skid-Steer Loaders Parts LIFT ARM

#
Part #
Item
Price
Qty
Add
1
067847
Nut/Nylon Insert Lock
$1.78
2
079209
Nut/Lock
$1.81
3
089079
Pin/Klik
$5.56
4
135773
FW 5/8, HT
$1.48
5
136863
Pin/Timing Link
$57.41
6
140697
Pin/Lower Rear Link
$86.54
7
184089
PIN/REAR ARM PIVOT
$74.65
8
191254
Support Assy
$67.59
9
191430
Thrust Washer
$9.48
10
191700
Pad
$1.95
11
193587
Pin/Flag Weldmn't
$21.39
12
245301
(T) Lift Arm/Weldment
$9,839.05
13
50301410
Weldment/Timing Link
$375.91
14
50350357
Pin/Pivot 1.75"
$24.98
15
50350501
(T) Link/Rear Timing Wldmnt
$3,033.32
16
570002
Fitting/Grease
$1.52
17
570003
Fitting/Grease
$6.28
18
650557
CS 3/8 x 1/2
$0.37
19
650729
CS 3/8x3-3/4 C5ZY
$0.54
20
651167
CS 5/8 x 2 C8ZY
$1.62
21
651537
Cs 3/4x2 C8zy
$2.89
22
651594
Cs 3/4x5 C8zy
$3.07
23
50304023
Shim/1.50x.75x.047
$1.42
Not Shown
088101
Lift Cylinder Bushing
$48.84
Not Shown
188946
Bushing/Spring
$21.89
Not Shown
139521
Bushing/Composite 1.760
$699.44
Not Shown
191384
Bushing/Composit 2.25
$133.45
