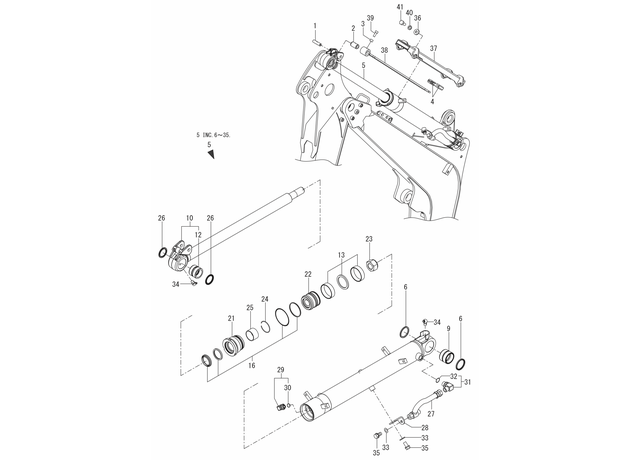

ARM CYLINDER (QUICK COUPLER SPEC.)

1

50283319

Shaft

$12.07

2

50283320

Grommet

$12.59

3

50283344

Spacer

$9.02

4

50283321

Guide/Slide

$7.56

5

50290373

Dipper Arm Cylinder

$3,044.55

6

50290351

Dust Pin Seal

$38.51

9

50290359

Pin Bushing

$185.60

10

50290360

Rod Repair Kit

$1,541.67

12

50290361

Pin Bushing

$183.88

13

50290362

Piston Seal Kit

$171.76

16

50291439

Seal Kit

$197.89

21

50290374

Head Gland

$625.92

22

50290364

Piston

$134.50

23

50290365

Locknut

$163.89

24

50290366

Clip

$5.83

25

50290367

Sleeve

$85.19

26

50290368

Dust Pin Seal

$22.31

27

50290369

Arm Pipe Assy

$1,156.59

28

50290370

Bracket

$348.68

29

50280823

Joint

$52.51

30

50288156

O-ring

$2.12

31

50280814

Connector

$69.08

32

50282474

O-Ring

$1.92

33

138111

Washer/Polished

$1.70

34

50282498

Fitting/Grease

product not available CALL FOR AVAILABILITY

$4.93

35

50288873

Bolt 10 x 16

$38.61

36

50283985

Washer

$2.07

37

50290371

Guide Assy

$438.82

38

50290372

Slide Plate

$391.20

39

50283655

Bolt

$6.27

40

50282393

Washer/Spring

$1.70

41

50284106

Bolt

$3.08
