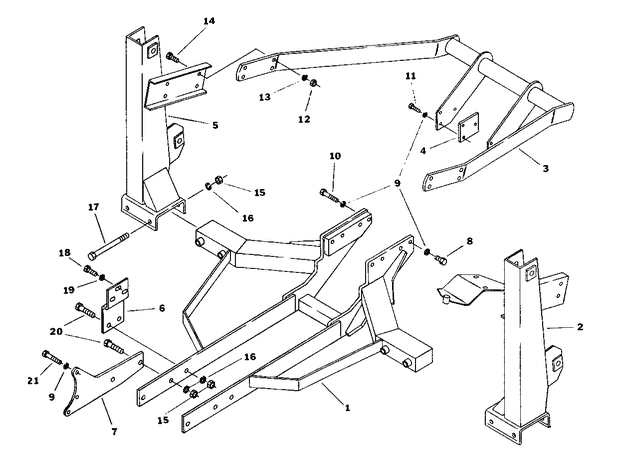

Kubota B7100HST-D NEW TYPE 001000 SUB-FRAME COMPONENTS

1

70050-94096

SUBFRAME, WELDMNT ***

product not available CALL FOR AVAILABILITY

$728.97

2

70050-94094

UPRIGHT, RH

$150.16

3

70050-94090

ARM, UPRIGHT***

$520.69

4

70050-94092

SPACER

$10.35

5

70050-94093

UPRIGHT, LH

$116.02

6

70050-94091

BRACKET

$18.38

7

70050-02570

BRACKET, REAR MOUNT ***

$65.71

8

01173-51225

BOLT M12x1.25x25 mm

$1.70

9

04512-50120

WASHER, SPRING LOCK ***

$2.21

10

01173-51260

BOLT M12x1.25x60 mm ***

product not available CALL FOR AVAILABILITY

$2.33

11

01073-51230

BOLT M12x1.25x30 mm ***

$1.87

12

75599-31013

NUT,3/8-16UNC FIN HEX G5 PTD *** ***

$0.22

13

75599-33013

WASHER LOCK 3/8" PTD Std Coil Spg -B *

$0.26

14

75599-01325

BOLT,3/8-16x1 1/4 HEX G5 PTD

$1.18

15

75599-31017

NUT,HEX 5/8-11 NC FIN G5 PTD

$1.07

16

75599-33017

WASHER,5/8 SPRING LOCK *

$0.70

17

75599-01702

BOLT HEX GR 5 PLTD 5/8-11 x 6

$10.12

18

01173-51030

BOLT M10x1.25x30 mm ***

$1.52

18

01173-51040

BOLT M10x1.25x40 mm ***

$1.87

19

04512-50100

WASHER,M10 SPRING LOCK ***

$0.57

20

75599-01745

BOLT, HEX 5/8-11x2 1/4 G5 PTD

$4.11

21

01053-51260

BOLT, HEX M12 ***

product not available CALL FOR AVAILABILITY

$2.47
