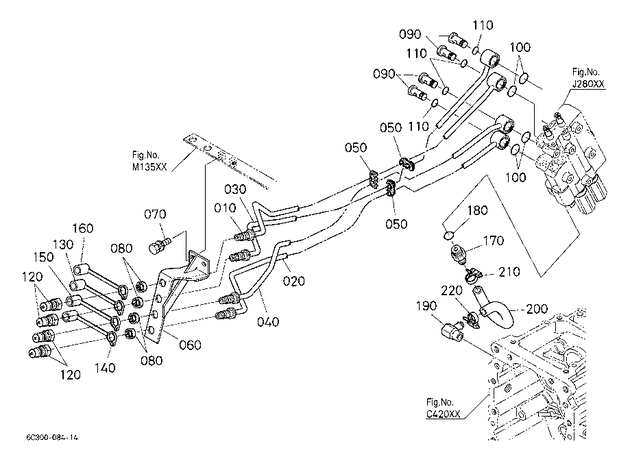

Kubota B2320DT HYDRAULIC SYSTEM J28501 HYDRAULIC LOADER PIPE ## S.No.; TO 31376 NOTE ORDER BY Fig.No.J28502 REF.No.

#
Part #
Item
Price
Qty
Add
010
H6C31-39410
PIPE, LV

product not available CALL FOR AVAILABILITY

$152.48
010
H6C30-39410
PIPE, LV

product not available CALL FOR AVAILABILITY

$377.23
020
H6C30-39420
PIPE, LV

product not available CALL FOR AVAILABILITY

$367.80
020
H6C31-39420
PIPE(LV)

product not available CALL FOR AVAILABILITY

$377.23
030
H6C30-39430
PIPE(LV)

product not available CALL FOR AVAILABILITY

$377.23
030
H6C31-39430
PIPE(LV)

product not available CALL FOR AVAILABILITY

$152.48
040
H6C31-39440
PIPE(LV) S/N >=A2456

product not available CALL FOR AVAILABILITY

$0.00
040
H6C30-39440
PIPE(LV)

product not available CALL FOR AVAILABILITY

$377.23
050
3F740-63200
CLAMP

product not available CALL FOR AVAILABILITY

$1.32
060
6C300-39460
BRACKET, LOADER PIPE
$46.55
070
01133-51020
BOLT M10x1.25x20 mm ***
$1.87
080
02174-50160
NUT,HEX M16x2 4T JIS ***
$1.94
090
75538-61320
BOLT, JOINT
$11.88
100
04817-00210
O-RING
$2.90
110
04816-00160
O-RING (CREEP SPEED KIT COMPONENT)
$1.72
120
K2581-66220
NIPPLE, 1/4 H2-63 *
$12.01
130
6C300-39512
CAP, BLUE
$6.53
130
6C300-39511
CAP,BLUE S/N <=31011

product not available CALL FOR AVAILABILITY

$0.00
140
6C300-39522
CAP, YELLOW
$6.53
140
6C300-39521
CAP,YELLOW S/N <=30912

product not available CALL FOR AVAILABILITY

$0.00
150
6C300-39532
CAP, RED
$6.53
150
6C300-39531
CAP,RED S/N <=30975

product not available CALL FOR AVAILABILITY

$0.00
160
6C300-39541
CAP,WHITE S/N <=30854

product not available CALL FOR AVAILABILITY

$0.00
160
6C300-39542
CAP, WHITE
$6.53
170
PP501-75540
PLUG

product not available CALL FOR AVAILABILITY

$14.59
180
68011-62220
O-RING
$3.51
190
EG283-45850
JOINT, HYD

product not available CALL FOR AVAILABILITY

$32.58
200
45521-75580
PIPE, RETURN
$23.37
200
6C360-38310
HOSE, RETURN (HYDRAULIC LOADER)
$19.16
210
6C050-58750
CLAMP, HOSE
$5.40
