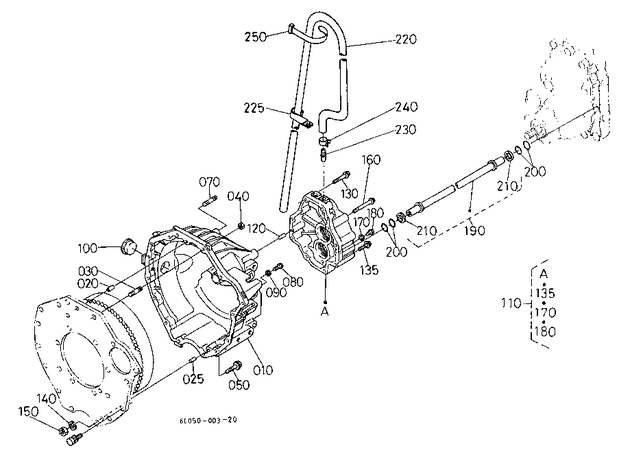

Kubota B2400HSE CLUTCH C40100 CLUTCH HOUSING

#
Part #
Item
Price
Qty
Add
010
6C040-13114
HOUSING, CLUTCH
$1,558.32
020
05012-00814
PIN, STRAIGHT
$1.12
025
66611-11160
PIN, KNOCK

product not available CALL FOR AVAILABILITY

$1.20
030
01517-51045
STUD ***
$1.49
040
02118-50100
NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***
$0.69
050
01754-50840
BOLT M8x1.25x40 mm ***
$4.88
060
01123-50830
BOLT M8x1.25x30 mm ***
$1.18
070
01555-51225
STUD
$2.15
080
01754-50812
BOLT M8x1.25x12 mm ***
$3.37
090
04717-00800
WASHER, w/RUBBER
$1.94
100
37410-13124
PLUG
$7.77
110
6C040-97812
SET COVER, C/HOUSING
$134.22
120
05012-00614
PIN, STRAIGHT
$0.69
130
01123-50840
BOLT M8x1.25x40 mm ***
$1.52
140
04512-70080
WASHER,SPRING
$0.52
150
02114-50080
NUT, HEX M8-1.25 4T ***
$0.52
160
01123-50860
BOLT M8x1.25x60 mm ***
$1.87
170
04717-01000
WASHER, SEAL W/RUBBER
$1.94
180
06331-35010
PLUG ***
$2.65
190
6C040-13153
PIPE, HYD
$49.12
200
04816-06170
O RING
$2.15
200
04816-00180
O-RING
$1.72
210
6C040-13160
RING
$4.34
220
6C040-13186
HOSE ***
$56.65
225
34150-29390
CLAMP, CORD

product not available CALL FOR AVAILABILITY

$6.34
230
6C040-13140
JOINT
$11.49
240
09318-88200
CLAMP, HOSE ***
$2.43
250
53581-64150
BAND, CORD L=140mm *
$4.16
250
55311-41260
BAND, CORD L = 250 mm ***
$4.16
