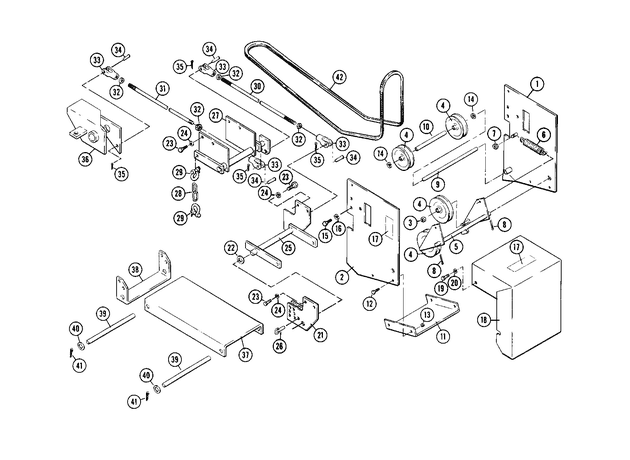

Kubota B5100D-P 004000 LINKAGE DRIVE ASSY

#
Part #
Item
Price
Qty
Add
1
70080-01228
PLATE ASSY-SIDE LH
$72.32
2
70080-01229
PLATE ASSY-SIDE RH
$61.85
3
70000-74028
O/L OBTAIN LOCALLY ***
$0.08
4
70080-01230
PULLEY FRONT IDLER ***

product not available CALL FOR AVAILABILITY

$32.54
5
70080-01231
BRACKET IDLER ASSY
$75.41
6
70080-00250
SPRING,TENSION ***NLA
$4.51
9
70080-01232
SHAFT, FRONT IDLER ***
$8.78
10
70080-01233
SPACER ***
$16.32
11
70080-01234
PLATE FRONT
$6.68
12
70080-00169
PULLEY ***
$65.19
15
70070-00233
BOLT
$1.89
16
04512-70120
WASHER,SPRING
$0.31
17
70080-00260
DECAL, CAUTION ***
$1.80
18
70080-01235
SHIELD FRONT
$49.21
21
70080-01236
LIFT, ASSY RH FRONT
$48.64
22
75599-32028
WASHER,1 7/8 FLAT USS PTD ***
$0.47
23
01173-51028
BOLT M10x1.25x28 mm

product not available CALL FOR AVAILABILITY

$1.04
24
04512-70100
WASHER,SPRING
$0.52
25
70080-01237
LIFT ASSY FRONT LH
$57.67
26
70080-00225
PIN ***
$6.69
27
70080-01238
LIFT ASSY REAR
$84.85
28
70080-01239
CHAIN LIFT 2 LINKS ***
$4.36
29
70080-00253
SHACKLE AND PIN ASSY ***

product not available CALL FOR AVAILABILITY

$23.11
30
70080-01240
ROD, CONTROL ***
$26.89
31
70080-00330
ROD, REAR ***
$31.93
33
70080-00303
CLEVIS ***
$16.75
34
70080-00304
PIN, CLEVIS ***

product not available CALL FOR AVAILABILITY

$1.02
36
70080-01241
3PT LFT BRACKET ASSY
$60.96
37
70080-01242
CHANNEL STABILIZER
$117.90
38
70080-01243
BRACKET STABILIZER
$33.67
39
70080-01244
SHAFT, STABILIZER
$12.03
42
70080-01201
BELT,V A 97.9 l x 1/2 w x 5/16 h ***
$18.73
