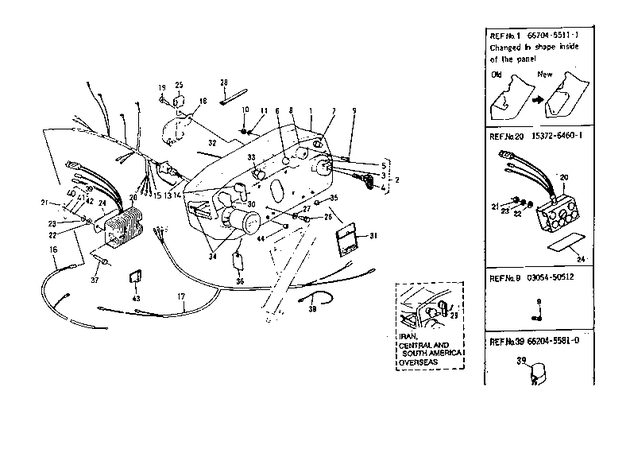

Kubota B7100D-P ELECTRICAL SYSTEM T05400 PANEL GROUP

#
Part #
Item
Price
Qty
Add
001
66711-55114
PANEL *****

product not available CALL FOR AVAILABILITY

$44.82
001
66704-55114
PANEL ***(54)

product not available CALL FOR AVAILABILITY

$103.08
002
66706-55120
ASSY, SWITCH, STARTER
$53.74
003
66711-55130
SWITCH
$82.96
004
66711-55240
KEY, MAIN SWITCH ASY
$9.15
005
66706-55150
LABEL
$7.22
006
66711-55290
LAMP, ASSY OIL PRES.
$35.96
007
54711-41830
SWITCH HORN ***
$17.96
007
32150-32240
SWITCH, HORN ***
$35.10
008
15231-65950
LAMP, GLOW PLUG IND.
$55.27
009
01053-50512
BOLT ***

product not available CALL FOR AVAILABILITY

$0.99
009
03054-50512
SCREW, PAN HEAD
$0.22
010
02054-50050
NUT ***
$0.26
011
04512-50050
WASHER, SPRING ***
$0.31
012
66704-55660
WIRE HARNESS** *
$500.38
012
66704-55165
ASSY WIREHARNESS ***

product not available CALL FOR AVAILABILITY

$263.72
012
66704-55160
ASSY WIRE HARNESS ***

product not available CALL FOR AVAILABILITY

$232.04
013
66204-55170
HARNESS, WIRE ***
$216.23
013
66704-55170
WIRE HARNESS 1 ***

product not available CALL FOR AVAILABILITY

$153.97
013
66704-55173
WIRE HARNESS 1 ***
$230.84
013
65704-55172
HARNESS, WIRE ***

product not available CALL FOR AVAILABILITY

$0.99
014
66621-55190
SWITCH
$97.05
015
66704-55180
WIRE HARNESS 2 ***

product not available CALL FOR AVAILABILITY

$234.72
015
66204-87110
WIRE HARNESS ***
$182.43
016
66711-55190
WIRE HARNESS 3 ***

product not available CALL FOR AVAILABILITY

$32.49
017
66704-55190
WIRE HARNESS 4 ***(54)
$23.06
018
66591-55300
HORN ASSY

product not available CALL FOR AVAILABILITY

$117.37
019
01202-50612
BOLT M6x1.0x12 mm ***
$0.94
020
H6720-55200
KIT, RECTIFIER

product not available CALL FOR AVAILABILITY

$106.07
020
15372-64602
REGULATOR, ASSY
$183.32
021
02014-50060
NUT, HEX M6x1.0 ***
$0.52
022
04013-50060
WASHER, PLAIN ***
$0.52
023
04512-50060
WASHER, SPRING ***
$0.31
024
66611-55260
CUSHION ***

product not available CALL FOR AVAILABILITY

$2.36
024
66704-55260
RUBBER ***

product not available CALL FOR AVAILABILITY

$42.79
025
15272-67580
CLAMP, CORD
$3.95
026
01123-50818
BOLT M8x1.25x18 mm ***
$0.75
027
04013-50080
WASHER, M8 PLAIN ***
$0.31
028
53581-64150
BAND, CORD L=140mm *
$4.16
028
34350-29380
BAND, CORD

product not available CALL FOR AVAILABILITY

$3.20
029
34159-34290
CAP, RUBBER

product not available CALL FOR AVAILABILITY

$9.26
030
55311-41120
SWITCH, LIGHT
$29.02
031
66591-55520
FUSE ASSY
$10.65
032
66711-43510
WIRE DECOMP
$45.11
033
04011-50100
WASHER, PLAIN ***
$0.31
034
66711-82910
METER, HOUR ***
$248.64
034
66704-55310
METER, HOUR ****

product not available CALL FOR AVAILABILITY

$285.62
035
35110-32420
PLUG
$3.77
036
66704-47450
INSTRUCTION CARD

product not available CALL FOR AVAILABILITY

$6.46
036
66706-47380
LABEL, INSTRUCTION

product not available CALL FOR AVAILABILITY

$3.90
037
01053-50640
BOLT M6x1.0x40 mm *

product not available CALL FOR AVAILABILITY

$0.99
038
66704-55510
BAND, CORD

product not available CALL FOR AVAILABILITY

$1.51
041
66204-55812
UNIT HAZARD ***

product not available CALL FOR AVAILABILITY

$105.17
042
66204-55820
STAY, UNIT ***

product not available CALL FOR AVAILABILITY

$2.73
043
66706-55220
CLAMP, CORD

product not available CALL FOR AVAILABILITY

$2.37
044
63763-52580
PLUG
$3.24
044
13151-67160
PLUG ***
$1.19
