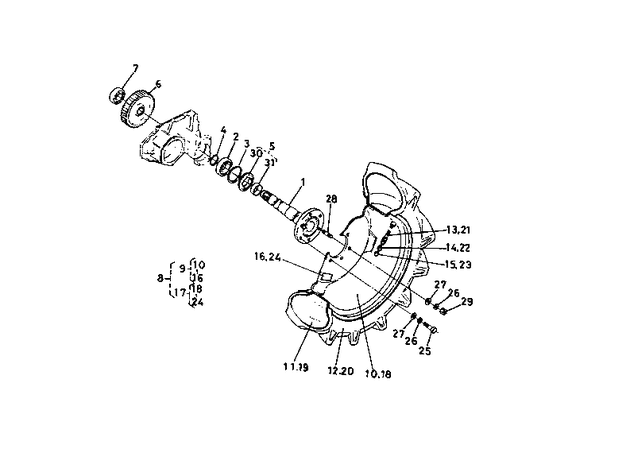

Kubota B8200DP REAR AXLE REAR WHEEL T03100 REAR AXLE AND REAR WHEEL (12.4-16)

#
Part #
Item
Price
Qty
Add
001
67111-17110
AXLE, REAR ***
$441.68
002
08101-06210
BEARING BALL RADIAL50/90 * ***
$31.52
003
04611-00900
CIR-CLIP, INTERNAL
$11.29
004
04612-00500
CIR-CLIP, EXTERNAL
$1.94
005
67111-17130
SEAL, OIL
$56.20
006
67111-17142
GEAR, SPUR 60
$470.94
007
08101-06307
BEARING, BALL (RADIAL) ***
$27.35
008
67810-50010
ASSY WHEEL, REAR ***
$1,907.94
009
67810-50100
LH REAR WHEEL ASSY.
$1,101.20
010
66418-27950
WHEEL, W11X16
$579.65
011
67810-50120
TUBE,12.4-16 RUBBER**
$37.69
012
70001-00071
TIRE 12.4-16 4 FSLF ***
$588.09
013
70000-00903
STEM, VALVE 2pc .625 (TR618A LARGE BOR)
$7.17
015
32150-27740
CORE, VALVE
$10.64
016
67810-50140
LABEL,12.4-16 LH ***
$0.72
017
67810-50200
RH REAR WHEEL ASSY.
$1,101.20
024
67810-50150
LABEL,12.4-16 RH ***
$0.72
025
01073-51635
BOLT M16x1.5x35 mm ***
$2.59
026
04512-70160
WASHER,SPRING
$0.69
027
04011-50160
WASHER, PLAIN PTD ***
$0.40
028
01517-51632
STUD
$2.92
029
02076-50160
NUT,HEX M16x1.5 ***
$1.65
030
67111-17150
SEAL, OIL
$35.39
