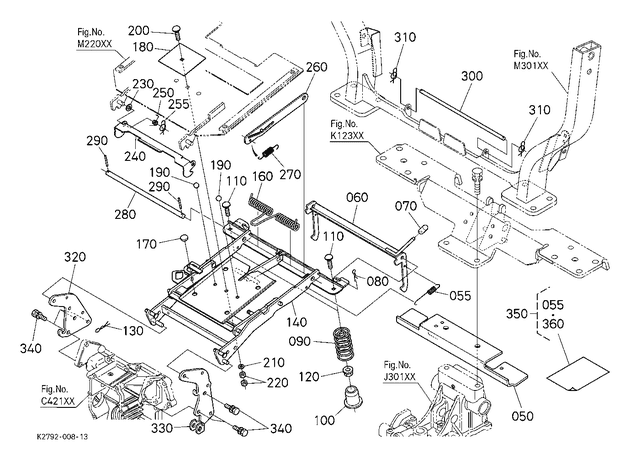

Kubota BX25D HOOD BONNET M21700 SEAT SUPPORT

#
Part #
Item
Price
Qty
Add
010
K2581-55594
SPRING, OPC
$6.86
020
K2511-55582
NUT, LOCK FLANGE
$0.61
030
01754-50820
BOLT M8x1.25x20 mm ***
$4.04
040
K2581-55570
HOSE, SPRING ***
$1.92
050
K2581-56390
STOPPER, SEAT

product not available CALL FOR AVAILABILITY

$55.97
055
K2551-56952
SPRING, SEAT HOOK
$1.95
060
K2792-56370
HOOK, SEAT

product not available CALL FOR AVAILABILITY

$52.23
060
K2581-56373
HOOK, SEAT

product not available CALL FOR AVAILABILITY

$32.42
070
K1211-56140
COVER, LEVER
$1.04
080
05515-50800
PIN, SNAP ***
$0.52
090
K2571-56782
SPRING (SEAT)
$8.90
100
K2561-56790
CAP, SPRING ***
$4.45
110
K1122-91332
BOLT,M8x1.25 SHORT SQ NECK ***
$0.52
120
02751-50080
NUT,HEX M8X1.25 FLANGE 4T
$3.97
140
K2792-56913
SUPPORT(SEAT) *

product not available CALL FOR AVAILABILITY

$314.55
140
K2792-56910
SUPPORT,SEAT S/N <=10668

product not available CALL FOR AVAILABILITY

$0.00
160
K2792-56640
SPRING (ASSIST) * ***

product not available CALL FOR AVAILABILITY

$26.43
170
K2591-56670
SPACER TURN SEAT * ***
$1.37
180
K2591-56683
SPRING, DETENT *

product not available CALL FOR AVAILABILITY

$11.27
190
07715-01607
BALL
$0.42
200
K2591-56752
BOLT,SHORT SQ.NECK,M8X1.25 *
$1.09
210
04015-50080
WASHER, PLAIN ***
$0.31
220
02156-50080
NUT, HEX M8 -1.25 ***
$0.52
230
04011-50100
WASHER, PLAIN ***
$0.31
240
K2592-56622
HOOK, SEAT
$13.29
250
K2592-56633
SPRING (SEAT HOOK) ***
$0.83
255
K1211-91132
COTTER, RUE RING
$0.52
260
K2592-56665
PLATE,STOPPER
$6.95
270
K2591-56653
SPRING, STOPPER ***

product not available CALL FOR AVAILABILITY

$2.27
270
K2792-56650
SPRING, STOPPER * ***

product not available CALL FOR AVAILABILITY

$2.27
280
K2792-56760
ROD,LINK

product not available CALL FOR AVAILABILITY

$11.10
290
05411-00440
PIN, SPRING
$0.71
290
05411-00430
PIN, SPRING
$0.69
300
K2591-56693
ROD, SEAT HOOK

product not available CALL FOR AVAILABILITY

$12.46
320
K2581-56723
STAY, SEAT RAIL RH F

product not available CALL FOR AVAILABILITY

$12.90
330
K2581-56730
STAY, SEAT RAIL LH F

product not available CALL FOR AVAILABILITY

$18.80
340
01123-51025
BOLT M10x1.5x25 mm ***
$1.44
350
K2792-95610
KIT SPRING

product not available CALL FOR AVAILABILITY

$8.78
