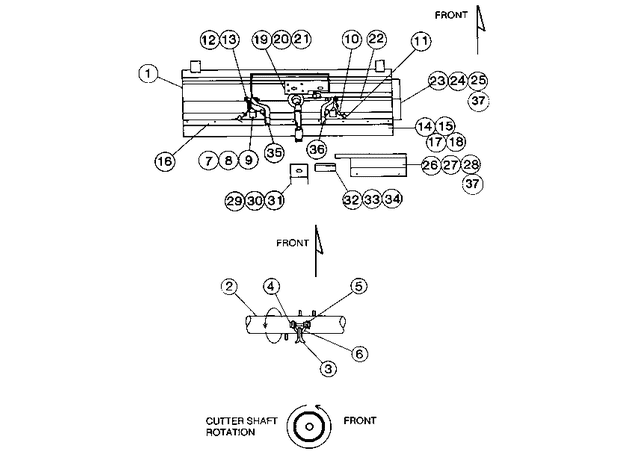

Kubota F2000 001000 MAINFRAME ASSEMBLY

#
Part #
Item
Price
Qty
Add
1
70080-04027
FRAME WIELD. ***
$1,814.32
2
70080-04028
SHAFT, CUTTER ***
$1,441.55
3
70080-04054
KNIFE, DETHATCHING (OPT) ***
$3.78
3
70080-04058
KNIFE, FLAIL
$9.34
3
70080-04094
PKG, KNIFE DETHATCH ***
$380.72
3
70080-04029
KIT KNIFE ***
$403.07
4
70080-04030
PIN, KNIFE ***
$1.91
5
70080-04031
PIN, COTTER 000026 ***

product not available CALL FOR AVAILABILITY

$0.99
6
70080-04064
SHACKLE ***

product not available CALL FOR AVAILABILITY

$9.06
7
70080-04039
MOUNT, RUBBER 2" ***
$53.80
8
70080-04040
BOLT ***
$0.81
9
70080-04041
WASHER, LOCK ***
$0.41
10
70080-04042
CHAIN, LIMIT ***
$12.47
11
70080-04043
SHACKLE ASSY. ***
$8.74
12
70080-04044
BOLT ***
$4.15
13
70080-04046
NUT ***
$2.97
14
70080-04047
TRASH DIFTR. ***
$25.69
15
70080-04048
BOLT ***
$0.54
16
70080-04049
BAR, TRASH DEFLECTOR ***
$46.56
17
75599-33011
WASHER,1/4" LOCK Rectang Coil Spring *
$0.14
18
70080-04051
NUT ***
$0.35
19
70080-04052
GEARBOX ***
$650.42
20
70080-04053
BOLT ***
$0.75
21
75599-33013
WASHER LOCK 3/8" PTD Std Coil Spg -B *
$0.26
22
70080-04085
SHAFT, EXTEND ASSY ***
$286.76
23
70080-04056
BELT COVER ***
$148.57
24
70080-04057
BOLT ***
$1.01
26
70080-04059
COVER, EXT. SHFT ***
$108.16
29
70080-04062
DRIVELINE SHLD. ***
$49.98
32
70080-04066
SHIELD, SIDE ***
$37.56
35
70080-04167
ARM ***
$209.13
36
70080-04168
ARM ***
$209.13
37
70080-04124
WASHER, FLAT 1/4" ***
$0.35
37
70080-04183
KNIFE STRAIGHTNER ***
$35.52
38
70080-04182
KNIFE GRINDER ***
$803.04
