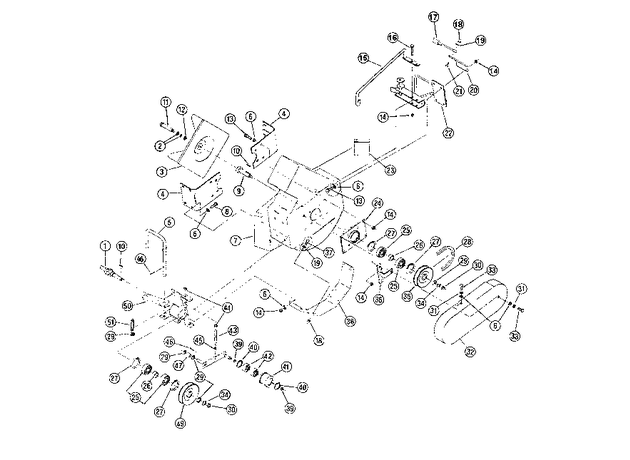

Kubota B1550E 005000 BLOWER PARTS

#
Part #
Item
Price
Qty
Add
1
76720-35032
DRIVESHAFT, ASSY ***
$201.33
1
76710-35032
DRIVESHAFT, ASSY ***
$220.60
2
70050-93198
WASHER 9/16 BELLEVIL ***
$4.32
3
76700-41102
FAN, BLOWER ***
$101.16
4
76700-40052
STIFFENER, BLOWER REINF ***

product not available CALL FOR AVAILABILITY

$41.83
5
76710-40501
PIN, ASSY J ***

product not available CALL FOR AVAILABILITY

$92.57
6
70000-74028
O/L OBTAIN LOCALLY ***
$0.08
7
76710-35023
HOUSING, BLOWER * ***
$112.44
9
76700-40201
SHAFT, FAN ***
$125.95
10
05912-00520
KEY, FEATHER

product not available CALL FOR AVAILABILITY

$1.65
11
76700-41200
BOLT, FAN SPECIAL ***
$58.38
12
76700-41400
WASHER SPECIAL ***
$4.41
15
76710-40702
ARM, REIFORCEMENT ***

product not available CALL FOR AVAILABILITY

$113.41
17
66071-99121
BAND, HOOK ASSY ***
$8.60
20
70050-93352
PLATE HOOK BAND ***
$14.79
22
76700-40601
HITCH FRONT BLOWER ***

product not available CALL FOR AVAILABILITY

$213.04
23
76700-41700
LABEL, WARNING 1 ***
$5.65
24
76700-40101
HOLDER, FAN BEARING ***
$178.36
25
08141-06304
BEARING,BALL RADIAL 20/52
$10.90
26
76700-40151
COLLAR *
$20.76
27
70050-93196
RING, SNAP *** ***
$2.89
28
76710-40850
BELT,V 4L 0.5x33.96 *** ***
$8.94
29
04013-50120
WASHER, PLAIN M12 ***
$0.52
30
02176-50120
NUT, HEX M12x1.25 ***
$0.92
32
76710-41501
SHIELD, BELT ***
$183.25
34
04512-50120
WASHER, SPRING LOCK ***
$2.21
35
76700-40752
PULLEY, 4" OD 103904 ***
$44.29
36
76700-41551
STAY BELT COVER ***

product not available CALL FOR AVAILABILITY

$35.82
37
70070-00404
BOLT 1/4"X1/1/2" ***
$0.29
38
76700-41001
PLATE BOTTOM HOUSING ***

product not available CALL FOR AVAILABILITY

$32.52
39
70050-93197
SNAP RING EXTERNAL ***
$0.39
40
70070-00107
RING ***
$1.52
41
76700-40351
PULLEY, FLAT 2.17x1.85 w/o BRG ***
$103.41
42
70080-01433
BEARING ***
$20.40
43
76700-40903
SCREW ***
$5.34
45
76700-40952
SPRING *** ***
$3.59
47
76700-40451
BUSHING ***
$3.07
48
76700-40401
ARM TENSION ***
$152.43
49
76700-40802
PULLEY, 5" OD IDLER
$66.24
50
76710-40250
HOLDER, JOINT WLDMNT
$121.80
51
76700-40552
SPRING COMPRESSION ***

product not available CALL FOR AVAILABILITY

$5.03
